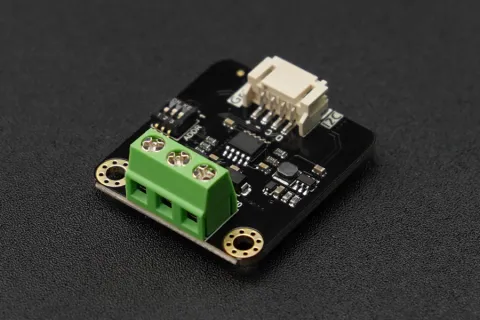

This is a 2-channel DAC module with I2C communication, a resolution of 15-bit, and an accuracy of 0.2%, capable of generating analog voltage outputs of 0-10V or 0-5V. The 0-10V or 0-5V voltage range is a standard driving method. It can be widely used in automation applications such as light adjustment, frequency converters, valve regulation, and pump control. Functional Diagram of Gravity: GP8413 2-Channel 15-bit I2C to 0-5V/10V DAC Module

Functional Diagram of Gravity: GP8413 2-Channel 15-bit I2C to 0-5V/10V DAC Module

Wiring Diagram of Gravity: GP8413 2-Channel 15-bit I2C to 0-5V/10V DAC Module

Wiring Diagram of Gravity: GP8413 2-Channel 15-bit I2C to 0-5V/10V DAC Module and Arduino UNO

We provide various models of DAC modules. If you need a different model, please check the selection guide:

Selection Guide of DAC Modules

FEATURES

Support 3.3V-5V power supply.
Output voltage error is less than 0.2%.
Output voltage linearity error is 0.01%.
Two channels of voltage output, either 0-5V or 0-10V, enabling connection and control of standard analog voltage devices.
Gravity interface, I2C communication, Arduino control, suitable for program automation control.
Features 8 adjustable I2C addresses, allowing simultaneous control of up to 16 devices.
The high precision and resolution of this module make it suitable for control scenarios that require higher signal accuracy.

APPLICATIONS

Automatic light adjustment
Variable frequency drive (VFD)
Automatic valve regulation
Automatic water pump control

SPECIFICATION

Operating voltage: 3.3V to 5V
Communication Method: I2C
Chip Type: GP8413
Resolution: 15-bit
Output Voltage: 0-5V or 0-10V
Number of channels: 2 channels
Value Range: 0 - 32767 corresponding to 0-5V or 0-10V
Output voltage: 0.2%
Output voltage linearity error: 0.01%

DOCUMENTS

Product wiki

SHIPPING LIST

GP8413: 2-Channel 15-bit I2C to 0-5V/10V DAC Module ×1
Gravity-4P I2C/UART Sensor Cable × 1

Gravity: GP8413 2-Channel 15-bit I2C to 0-5V/10V DAC Module

Gravity: GP8413 2-Channel 15-bit I2C to 0-5V/10V DAC Module
