Note: The product not include Raspberry Pi Pico.

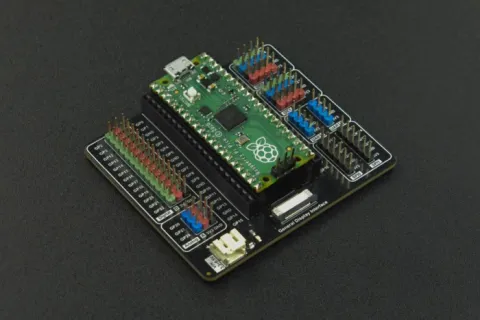

This Gravity Expansion Board, specifically designed for Raspberry Pi Pico, is compatible with a variety of Gravity sensors and modules.

With all pins led out, you can directly use it without soldering. Additionally, the board offers various communication ports including, 2 x I2C, 2 x UART, 2 x SPI, 3 x analog IOs and 13 x digital IOs as well as a 3.3~5.5V power connector and GDI port, which provides you with an easier way to prototype.

Gravity Expansion Board for Raspberry Pi Pico

Gravity Expansion Board for Pico

All pins brought out, no soldering required

Additional Communication Ports: Digital IO, Analog IO, I2C, SPI, UART, GDI

FEATURES

No need to weld, plug-and-play

Support all kinds of Gravity sensors and modules

Comes with 3.3~5.5 V PH2.0 power interface, applicable to mobile projects

Onboard GDI port, compatible with DFRobot - GDI series display

SPECIFICATION

All pins brought out onto female pin headers

Digital IO x 13: GP2, GP3, GP12-22

Analog IO x 3: GP26-GP28

UART x 2

I2C x 2

SPI x 2

PH2.0 Power Connector: 3.3 V - 5.5 V

Display Screen Interface: GDI

Dimension: 73.00x63.00 mm/28.74x24.8 inch

DOCUMENTS

Product wiki

Datasheet

SHIPPING LIST

Gravity: Expansion Board for Raspberry Pi Pico x 1
