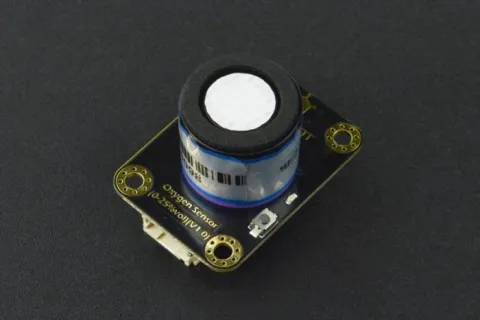

This Oxygen Sensor is based on electrochemical principles and it can measure the ambient O2 concentration accurately and conveniently. With high anti-interference ability, high stablility and high sensitivity, this arduino-compatible oxygen sensor can be widely applied to fields like portable device, air quality monitoring device, and industries, mines, warehouses and other spaces where air is not easy to circulate.

This compact dfrobot oxygen sensor supports I2C output, it can be calibrated in the air, can accurately measure the oxygen concentration in the environmentit. It is compatible with many mainboards like Arduino Uno, esp32, Raspberry Pi and so on. Its measurement range is 0~25%Vol, and resolution can reach to 0.15%Vol. It supports wide range input voltage: 3.3V to 5.5V. Moreover, the lifetime is as long as 2 years. With simple Gravity interface and practical sample code, you can build your own oxygen concentration monitor easily and conveniently.

I2C Oxygen Sensor Selection Guide

Product Gravity:Electrochemical Oxygen Sensor (0-25%Vol) - I2C

Gravity:Electrochemical O2 Sensor (Calibrated)

- I2C & UART

Gravity:Electrochemical Oxygen Sensor (0-100%Vol) - I2C

SKU SEN0322 SEN0465 SEN0496

Detection

Range

0~25%Vol 0~25%Vol 0~100%Vol

Calibration

Method

Manual calibration Factory calibration Manual calibration

Output Signal I2C I2C、UART、Analog I2C

Working

Principle

Electrochemical Electrochemical Electrochemical

Stability <2%/Month <2%/Month <10%/Year

Response Time ≤15S ≤15S 0.1%~20.9%<40S 20.9%~100%<5S

Operating

Pressure Range

101kPa±10% 101kPa±10% 0.5 - 2.0 Bar

Temperature

Compensation

× √ ×

FEATURES

High sensitivity

I2C Interface

Compatible with both 3.3V and 5V micro-controllers

Polarity protection

SPECIFICATION

Detection of Gas: oxygen

Operating Voltage: 3.3 to 5.5V DC

Output Signal: I2C output

Measurement Range: 0~25%Vol

Maximum Measurement limit: 30%Vol

Resolution: 0.15%Vol

Sensitivity: (0.10±0.05) mA (in the air)

Stability: <2% (
