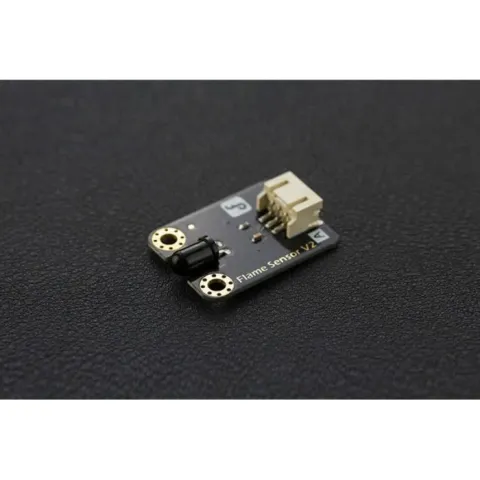

This Arduino flame sensor can be used to detect fire or other wavelength at 760 nm ~ 1100 nm light. In the fire-fighting robot game, the flame plays an important role in the probe, which can be used as the robot's eyes to find fire source or football. It can make use of fire-fighting robots, soccer robots.

The Flame sensor has probe angle of 60 degrees, two M3 mounting holes is provided to install on various platforms.

This arduino flame sensor's operating temperature is -25 degrees Celsius to 85 degrees Celsius, in the course of the flame it should be noted that the probe distance from the flame should not be too close inorder to avoid damage.

Arduino Flame Sensor Demo Project 2

This sensor can sense flame sensitively!!

Arduino Flame Sensor Demo Project

This sensor uses Gravity interface, and works from 3.3V-5V which is able to be compatible with various platforms such as Arduino, Raspberry Pi, Intel Galileo, Curie and Joule.

Improvement

Wide voltage range from 3.3V to 5V

Standard assembling structure (two 3mm holes with multiple of 5cm as interval)

Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)

Icons to simplely illustrate sensor function

High quality connector

Immersion gold surface

SPECIFICATION

Supply Voltage: 3.3V to 5V

Detection range: 20cm (4.8V) ~ 100cm (1V)

Rang of Spectral Bandwidth : 760nm to 1100nm

Responsive time : 15us

Interface: Analog

Size:22x30mm (0.87x1.18in)

DOCUMENTS

Wiki (Gravity: Analog Flame Sensor For Arduino)

Schematic

YG1006 Datasheet

SHIPPING LIST

Flame Sensor x1

Analog cable x1

Gravity: Analog Flame Sensor For Arduino

Gravity: Analog Flame Sensor For Arduino
