is is a Arduino compatible pressure sensor module with a measuring range of 15-700kPa, which supports I2C digital output and can be calibrated according to known pressure values and allows fast and accurate measurement of pressure values in pipelines or other environments.

It is suitable for pipeline air pressure detection, natural science experiments and other scenarios.

Gravity: Air Pressure Sensor(15-700kPa) - I2C - MPX5700AP

FEATURES

Supports I2C digital output
Can fast and accurate measurement of pressure values

APPLICATIONS

Pipeline air pressure detection

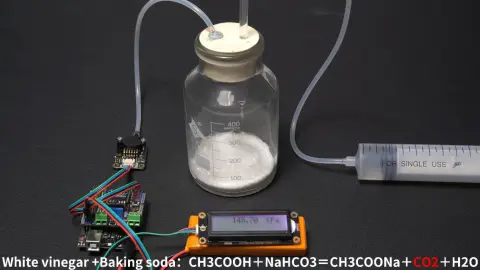

Natural science experiments

SPECIFICATION

Detection of physical quantities: Air pressure
Working voltage: 3.3～5.5V DC
Power dissipation: 0.06W（5V）
Output signal: I2C output（0~3V）
Measuring range: 15-700kPa
Deviation:＜2.5%
Resolution ratio: ≤1kPa
Working temperature: 0～85℃
Circuit board size: 32mm*43mm

DOCUMENTS

Product WIKI
Schematic
Dimensions

SHIPPING LIST

Gravity: Pressure sensor(15-700kPa) x1
Gravity-4pin I2C Cable x1

Gravity: Air Pressure Sensor (15-700kPa) - I2C - MPX5700AP

Gravity: Air Pressure Sensor (15-700kPa) - I2C - MPX5700AP

Rp 1.816.920
