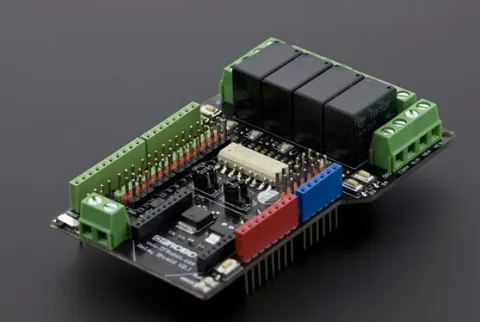

This Arduino Shield is a completely newly designed that is able to control 4 relays at a time. The max switching power DC 90W or AC 360VA gives direct control by Arduino Uno/DFRduino controllers through digital I/Os with external 9V supply. With built-in Xbee socket, it can be wireless remote controlled via Xbee/bluetooth/WPM.

This arduino relay shield is an ideal solution for home automation and robotics applications.

NOTE:The Arduino board requires an external power supply to drive the xbee module and relays.

Warning:Pay special attention to the voltage that is over 38 volts.

Project 1: IR Home Automation based on DFRobot's Relay Shield

Materials:

Arduino UNO Rev 3

4 Channel Relay shield

IR Kit for Arduino

FEATURES

Compatible with Arduino UNO Rev3

Each Relay has its own test button to test the connection

Standard DFRobot 3 Pin out

XBee I/O direct control

SPECIFICATION

Compatible with Arduino Rev3

4 buttons to test module

LED status indicator of relay

Support Xbee IO directly control

Xbee socket for wireless communication

Selectable digital IO pin for control(Default digital 2,7,8,10)

6 channels Analog IO & 13 channels Digital IO

Up to 4 Relay with photo-coupled circuit

Contact Rating 3A AC 120V / DC 24V

Max Switching Voltage AC 240V / DC 60V (Less than 38V is recommended)

Max Switching Current 5A

Max Switching Power AC 360VA / DC 90W

Electrical Life (Min) 100,000 Operations

Mechanical Life (Min) 10,000,000 Operations

Safety Standard(relay) UL cUL TUV CQC

Coil Working Voltage 9VDC

Working temperature -30℃ to +85℃

Working Humidity 40% - 85%

Size:95x65mm

DOCUMENTS

Wiki (Relay Shield for Arduino V2.1)

Schematics

Board Layout

Sample code

HJR4102 datasheet
