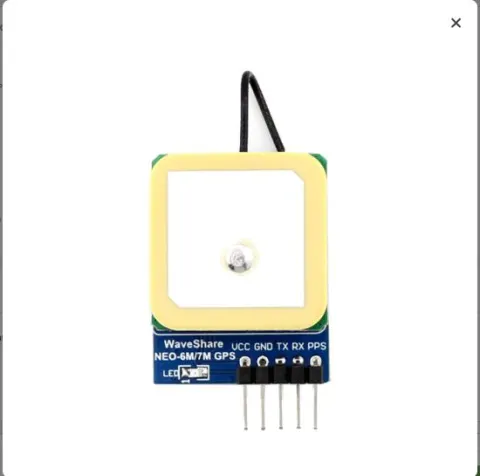

GPS Ublox Neo-7M upgrade versi Neo-6M.

#Lebih sensitif terhadap signal

#Lebih cepat pencarian dan lock signal gps

#Lebih Stabil dari versi 6M

#Parameter,data protocol,library dan coding sama dengan Neo-6M

Module parameters

1. Voltage

Input voltage: 3.3-5.5V

Power consumption

Normal mode: 50 mA

Power Saving Mode: 30 mA

2. Temperature

Operating Temperature -40 C to + 85 C

Storage temperature -55 C to + 100 C

3. Pin descriptions and electrical connections

Module pin

#1 VCC Power input pin 3.3-5.5V

#2 GND Power ground

#3 RXD Module serial port to receive the foot - then single-chip serial port TXD sent

#4 TXD Module serial send pin - then the microcontroller serial RXD reception

#5 PPS Clock pulse output pin

Module PPS feet connected to the red LED lights

**On: Normal operation, but not positioned. **Blinking: The positioning was successful

4. Baud rate

The default baud rate for the module is 9600

5. Characteristic parameters

Module comes with ceramic antenna, another IPEX interface can be connected to other active antenna

Module increases the RF amplifier circuit, is conducive to speed up the search start

The module comes with rechargeable battery backup, you can power-down to maintain ephemeris data

Module compatible with 3.3V / 5V level, easy to connect a variety of microcontroller systems

GPS Ublox Neo-7M NEO7MV2 Module with Flight Control EEPROM WMC APM 2.5

Rp 241.080
