ADA VARIAN

1. GM 65

2 GM65 DFRobot

3. GM 66

Perbedaan GM65, GM66

-GM66 tertutup casing, GM65 terbuka (untuk di tanam di embed sistem/box lain)

-GM66 port USB dengan USB type A, GM65 port USB dengan socket SH pitch 1.25mm

Barcode dan QR Code Scanner bisa koneksi USB dan Serial/TTL/UART

*Bisa scan via tombol atau dengan Serial Command.

Support Arduino,ESP8266,STM32,Raspberry dll.

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination

8.Superior reading performance utilizing advanced decoding algorithms

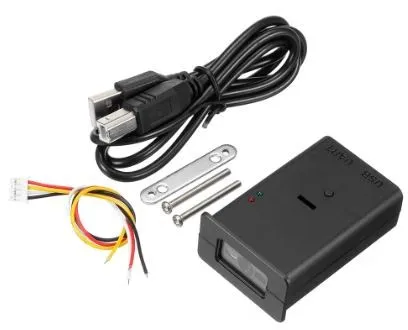

Model : GM65/GM66/

Type : Barcode Scanner

Decoding Ability

1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect

2D: PDF417,QR Code ,Data Matrix ect

Interface : USB2.0 \ UART

Resolution : 0.10mm (4mil)

Operating Voltage : 5V

Operating Current : 120mA

Weight : 31g

Size : 62.3*42.5*24.5mm

Type of Illuminant : 617nm LED(Aimer), 6500K LEDs(Illumination)

LED Indicator Buzzer and bi-color light: Red-power, Blue-decoding Successfully

Scan Angle : Roll:0-360°, Pitch:±65°or greater, Yaw:±60°or greater

Scanning angle Inclination angle : 34°, Elevation angle 26°

Print Contrast : 30% minimum reflective difference

Reading Distance : 25 - 250mm

Operating Temperature : -20 degrees to 55 degrees

Temperature Humidity : 5% to 95% Relative humidity, Non-condensing

Light Levels : 0-85000LUX

manual : https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0

Item yg dikirim sesuai Varian yg dipilih

GM66 GM65 Barcode Scanner Reader USB Serial UART TTL Arduino

Rp 565.600
