Introduction

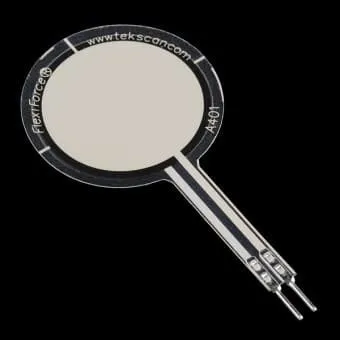

This is a piezoresistive force sensor. The harder you press, the lower the sensor's resistance. Pressing hard, the resistance changes from infinite to ~50k. The sensor itself is thin and flexible,

but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end of the sensor. This sensor is commonly used as a presence sensor (someone standing),

weight sensor, pressure sensor (impact testing), etc.

The overall length is about 2.25". The sensor comes with a 0.1" spaced, reinforced, breadboard friendly connector.This sensor ranges from 0 to 25lbs of pressure.

Application

Detect and measure a relative change in force or applied load

Detect and measure the rate of change in force

Identify force thresholds and trigger appropriate action

Detect contact and/or touch

Specification

Greater flexibility

Superior linearity &accuracy (±3%)

Wide range of forces

Connector 2-pin Male Square Pin

Pin Spacing 2.54 mm (0.1 in.)

Constant load of 25 lb (111 N)

Sensing Area 25.4 mm (1 in.) diameter

Size: 56.8x31.8mm

Shipping List

Flexiforce Pressure Sensor - 25 lbs (1" area) (1 unit)

Documents

Datasheet

Product manual
