FEATURES

Compatible with FireBeetle series

Compatible with Arduino programing

Built-in 32-bit Tensilica L106 MCU and 10-bit ADC

Support RTOS SDK in Linux, Arduino IDE and Micropython.

Support IEEE802.11 b/g/n WiFi (2.4 GHz~2.5 GHz)

Support TCP / IP

Support Lithium Battery (The Maximum charge current: 500mA)

Support Low Power Consumption

Support OTA Updating

Support STA/AP/STA+AP

SPECIFICATION

Operating Temperature: -40℃~+85℃

Operating Voltage: 3.3V

Input Voltage (limits): 3.3~5V (Lithium Battery:3.7V & USB:5V)

Microcontroller: Tensilica L106 (32-bit MCU)

Clock Speed: 80MHz (Maximum: 160MHz)

SRAM：50KB

External Flash Memory: 16MB

DC Current in the Low-Power-Consumption: 46uA

Average Operating Current: 80mA

Maximum Discharging Current: 600mA (LDO-3.3 Output)

Maximum Charging Current: 500mA

Digital Pin x10

Analog Pin x1

SPI interface x1

I2C interface x1

IR interface x1

I2S interface x1

Interface: XH2.54mm Pin (No soldering default)

In Combination of Wi-Fi MAC/ BB/RF/PA/LNA

WiFi: IEEE802.11 b/g/n (2.4 GHz~2.5 GHz), not support 5GHz WiFi

Dimension: 58 × 29(mm)

Operating Temperature: -10℃~+55℃

Mounting Hole Dimension: 53 x 24(mm)

Weight: 24g

DOCUMENTS

Product WiKi

SHIPPING LIST

FireBeetle Board-ESP8266 ×1

18pin-2.54mm ×2

18pin-2.54mm Female Holder ×2

Produk detail bisa cek link ini https://www.dfrobot.com/product-1634.html

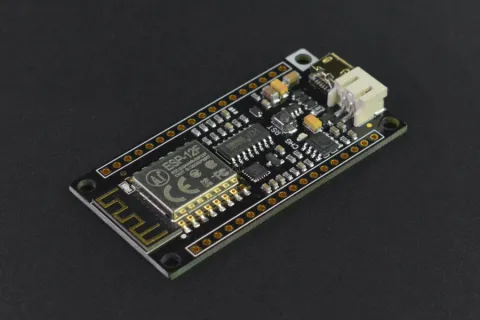

FireBeetle ESP8266 IoT Microcontroller (Supports Wi-Fi)

Rp 217.560
