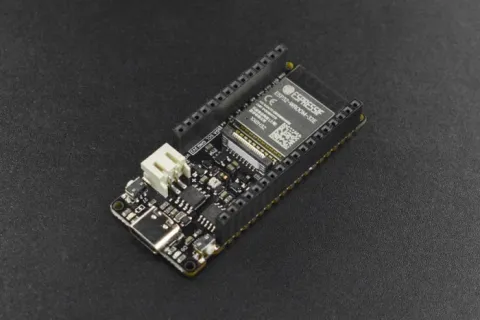

FireBeetle ESP32-E supports Arduino programming, and will support Scratch graphical programming and MicroPython programming very soon. We provide you with detailed online tutorials and application cases, and there are thousands of sensors with welding-free Gravity interface and actuators to help you get started easily. Besides, the stamp hole design makes it able to be easily embedded in your PCB, greatly saving your costs and time to build and test prototype.

FEATURES

ESP32 Dual-core low power maincontroller, 10uA power consumption

WiFi+Bluetooth 4.0 Dual-mode Module

GDI Display Port, easy to connect

Onboard Charging Circuit and PH2.0 lithium Battery Interface

SPECIFICATION

Operating Voltage: 3.3V

Input Voltage: 3.3V~5.5V

Support Low-Power: 10uA

Max Discharge Current: 600mA@3.3V LDO

Max Charge Current: 500mA

Support USB Charging

Processor: Tensilica LX6 dual-core processor (One for high-speed connection; one for independent application development)

Main Frequency: 240MHz

SRAM: 520KB

Flash: 4MB

Wi-Fi Standard: FCC/CE/TELEC/KCC

Wi-Fi Protocol: 802.11 b/g/n/d/e/i/k/r (802.11n，speed up to 150 Mbps), A-MPDU and A-MSDU Aggregation, support 0.4us guard interval)

Frequency Range: 2.4~2.5 GHz

Bluetooth Protocol: Bluetooth v4.2 BR/EDR and BLE standard compliant

Bluetooth Audio: CVSD and SBC audio

Operating Current: 80mA（Average）

Support Arduino download with one-key

On-chip Clock: 40MHz crystal, 32.768KHz crystal

Digital I/O x10（Arduino default）

Analog Input x5（Arduino default）

SPI x1（Arduino Default）

IIC x1（Arduino Default）

I2S x1（Arduino Default）

RGB_LED: 5/D8

Connector: FireBeetle V2 series compatible

Operating Temperature: -40℃~+85℃

Module Size: 25.4×60mm/1×2.36”

Mount Hole Size: inner diameter of 2.0mm

DOCUMENTS

Product wiki

SHIPPING LIST

FireBeetle Board ESP32-E with Header x1

18pin-2.54mm Pitch Pin x1

18pin-2.54mm Pitch Pin Female x1

14pin-2.54mm Pitch Pin x1

14pin-2.54mm Pitch Pin Female x1
