Features:

Make adding fingerprint detection and verification super simple.

Typically used in safes-there's a high powered DSP chip that does the image rendering, calculation, feature-finding and searching.

Connect to any microcontroller or system with TTL serial, and send packets of data to take photos, detect prints, hash and search.

You can also enroll new fingers directly - up to 162 finger prints can be stored in the onboard FLASH memory.

There's a red LED in the lens that lights up during a photo so you know it is working.

Specifications:

Supply voltage: DC 3.8-7.0V

Operating Current: <65mA

Peak current: <95mA

Fingerprint image time: <1.0 seconds

Window area: 14.5*19.4 mm

Signature File: 256 bytes

Template files: 512 bytes

Storage capacity: 1000

False Accept Rate (FAR): <0.001% (security level 3)

False Reject Rate (FRR): <1.0% (security level 3)

Search time: <1.0 seconds (1: 500 average)

PC interface: UART (TTL logic level)

Baud rate (UART): (9600*N)bps (N=1~12, N default 6, equal 57600bps)

Working environment: Temperature: -20 °C to 50 °C

Relative Humidity: 40% RH to 85% RH (non-condensing)

Storage Environment: Temperature: -40 °C to 85 °C

Relative humidity: <85% H (no condensation)

Lighting: Long light/Flashing

Dimensions (L* W* H): 56*20*20.5mm

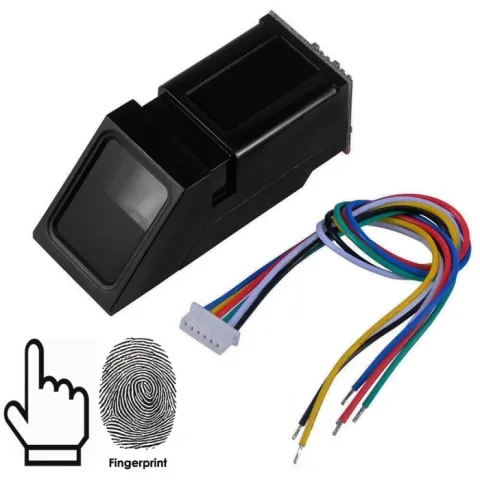

Finger print module 6wire

Rp 222.264
