Wiring Diagram of Fermion: MEMS EtOH Sensor and Arduino UNO

Figure: Wiring Diagram of Fermion: MEMS EtOH Sensor and Arduino UNO

FEATURES

Compact size, measuring only 13*13*2.5mm
Low power consumption, operating current ＜20mA
High sensitivity and rapid response recovery
Advanced MEMS technology

APPLICATIONS

Breathalyzer: measures the blood alcohol content (BAC) of a person by analyzing their breath.
Indoor air quality monitoring: monitors the level of volatile organic compounds (VOCs) in the indoor environment.
Food quality control: measure EtOH emission from food samples and determine their shelf life or quality.

SPECIFICATION

Gas detected: Ethanol (EtOH)
Detection range: 1-500ppm
Operating voltage: 3.3-5V
Operating current: ＜20mA
Output signal: Analog voltage
Sensitivity: R0(in air)/Rs(in 150ppm EtOH) ≥ 3
Operating temperature: -10-50℃
Operating humidity: 15-90%RH (non-condensing)
Lifespan: ≥5 years (in air)
Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"

PROJECTS

Project: Building an Electronic Nose with MEMS Gas Detection Sensor Breakout Series and Edge Impulse Platform

Introduction:

In this project, I developed an electronic nose using DFRobot mems series gas sensors and the Edge Impulse platform, which is capable of identifying the scents of beverages and fruits.

Building an Electronic Nose with MEMS Gas Detection Sensor Breakout Series and Edge Impulse Platform

DOCUMENTS

Product wiki
Schematics & Dimension
Characteristic Parameter

SHIPPING LIST

Fermion: MEMS Ethanol EtOH Gas Sensor (breakout) × 1
2.54mm pitch header pin × 1

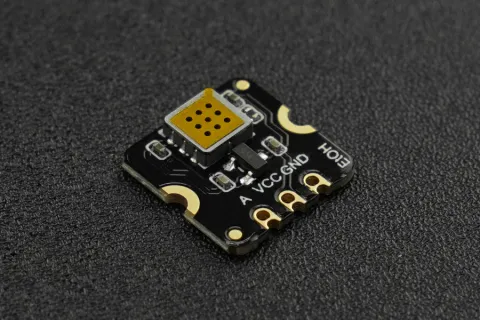

Fermion: MEMS Ethanol EtOH Gas Detection Sensor (Breakout, 1-500ppm)

Fermion: MEMS Ethanol EtOH Gas Detection Sensor (Breakout, 1-500ppm)

Rp 149.940
