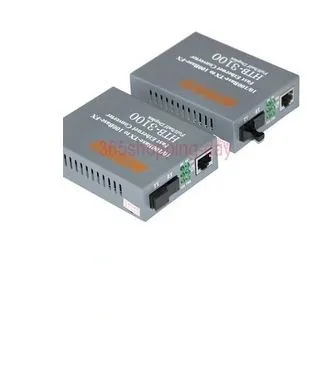

Fast Ethernet Fiber Optical Media converter, Single Fiber, SC connector , SM, 25km, 1*9,internal power supply 2pair <2pcs>

Feature

The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.

Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex.

UTP port supports MDI / MDI-X auto crossover

Supporting flow control

Supporting 1552 Byte packet

Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

Design of internal or external power supply for selection by users

Specification

Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX

MAC address table: 1K

Connector:

UTP: RJ-45 10/100Mbps;

Fiber: SC 100Mbps

Cable:

UTP: Cat. 5 UTP (the max distance up to 100m)

Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125m(the max distance up to 90km)

Flow Control

Full Duplex: IEEE802.3x

Half Duplex: Backpressure

LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.

Power: AC 110V - 220V to DC 5V; DC48V to DC 5V

Ambient temperature0 50

Storage temperature-20 +70

Humidity: 5% 90%

Dimensions:

Internal power: 30110140mm

External power: 267093mm

Package Including:

2pcs HTB-3100A and HTB-3100B

2pcs High Qulity power adapter

Fast Ethernet HTB3100 Fiber Optical Media converter, Single Fiber

Fast Ethernet HTB3100 Fiber Optical Media converter, Single Fiber
