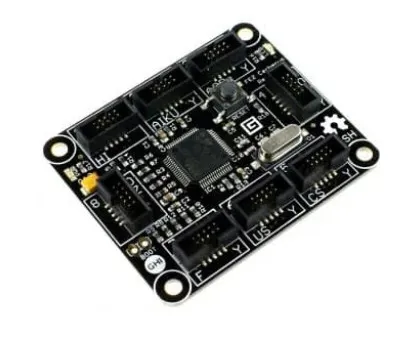

FEZ Cerberus Mainboard is a 100% open source hardware .NET Gadgeteer-compatible mainboard with 168Mhz 32bit Cortex M4 processor with floating point, 1MB FLASH and 192KB RAM. This tiny mainboard has plenty of peripherals exposed on 8 sockets. A perfect match for robotics, quadcopters and cloud-sensor-monitoring. The 112KBytes of heap memory offers plenty of memory needed for just about any network or internet connected application.

Specification

Requires .NET Gadgeteer standard red power modules.

.NET Gadgeteer compatible sockets types: X, Y, A, C, D, F, H, I, K, O, P, S, U and Z.

Interface

USB

SPI

I2C

2 UART

CAN

9 Analog Inputs

2 Analog Output

4-bit SD/MMC Memory card interface

6 PWM

OneWire interface

Other Features

Configurable on-board LED.

.NET Micro Framework 4.2 (supporting C# and Visual Basic)

168Mhz 32bit processor with floating point

1MB FLASH, over 300K for user's code

192KB RAM, 112KB for user's heap

Full TCP/IP Stack with HTTP, TCP, UDP, DHCP

Built-in Real Time Clock (Needs 32Khz crystal)

RLPLite allowing users to load native code (C/Assembly) for real-time requirements.

FAT File System

Active power consumption TBA

Idle power consumption TBA

RoHS compliant /Lead-free compliant

Operating temperature:-20 to 70°C

Size:2.25" x 1.85"
