Introduction

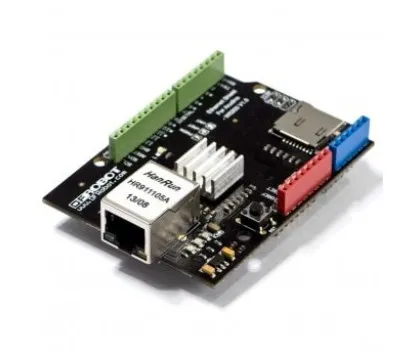

This Arduino-sized Ethernet Shield is based on the Wiznet W5200 Ethernet Chip, and provides an easy way of getting your Arduino Online. Fits all version of arduino Main board,e.g.UNO, mega 2560. To start, just plug this module onto your Arduino board, connect it to your network with an CAT 5 Ethernet Cable (not included) and follow a few simple instructions, you will be able to explore the world with internet. The pin layout also allows another shield to be stacked on top. An aluminum alloy radiator is placed onto W5200 chip to release excessive heat.

Features

Directly supported by Arduino official Ethernet Library.

Add-on micro-SD card slot, which can be used to store files and accessed via the SD Library.

Compatible with the Arduino Uno as well as Mega (2560).

The Wiznet W5200 provides a network (IP) stack capable of both TCP and UDP.

Supports up to four simultaneous socket connections ( eigth with the upgraded library )

Use the Ethernet library to write sketches which connect to the internet using the shield.

Aluminum alloy radiator to release excessive heat

Applications

Home network device: set top box, PVR, digital media center

Serial Ethernet: access control system, LED display, wireless AP repeater, etc.

Parallel Ethernet: POS machine or hand-held printer, copier

USB Ethernet: storage devices, network printers

Security Systems: Network Camera

Monitoring equipment

Embedded Server

Technical Specifications

Working voltage: 5v

Ethernet socket

Support Micro SD card reading / writing

Ethernet and SD card sharing the SPI interface, only one function per i

Standard size Arduino compatible controller, while supporting Arduino Mega Series

Size: 70x55x30mm
