EXPANSION BOARD ADC 24 BIT ADS1256 DAC8532 Raspberry Pi 3B/2B/A+/B+

Product Description

There's no AD/DA function on the Raspberry Pi GPIO interface, this may trouble you in the Pi development. However, it won't be a problem anymore. The High-Precision AD/DA Board allows you to add high-precision AD/DA functions to the Raspberry Pi.

DOCUMENTATION

Supported Pi

• Raspberry Pi 1 Model A+

• Raspberry Pi 1 Model B+

• Raspberry Pi 2 Model B

• Raspberry Pi 3 Model B

Features

• Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate

• Onboard DAC8532, 2ch 16bit high-precision DAC

• Onboard input interface via pinheaders, for connecting analog signal

◦ the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules

• Onboard input/output interface via screw terminals, for connecting analog/digital signal

• Features AD/DA detect circuit, easy for signal demonstration

What's on Board

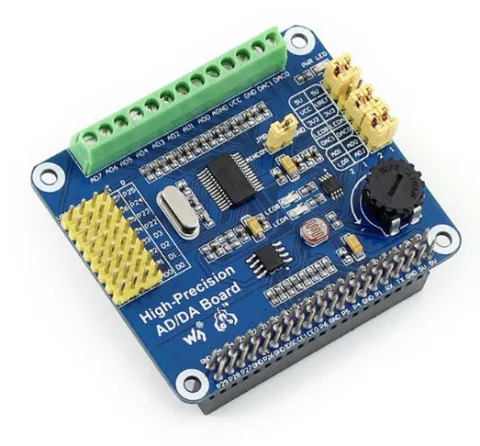

RPi expansion board on board resource

Raspberry Pi GPIO interface : for connecting with the Pi

AD/DA input/output : screw terminals

AD input : pinheaders, the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules

7.68M crystal

LM285-2.5 : provides reference voltage for the ADC chip

Photo resistor

LED output indicator

10K potentiometer

DAC8532 : 16bit high-precision DAC, 2ch

Power indicator

ADS1256 : 24bit high-precision ADC, 8ch (4ch differential input)

ADC testing jumper

DAC testing jumper

Power selection jumper

ADC reference ground configuration : when AD single inputted, the AINCOM is reference terminal, can be connected to GND or external reference voltage
