ESP8266 adalah modul komunikasi Wi-Fi ke Serial yg lengkap. Dapat dihubungkan ke Arduino melalui pin Rx Tx dan menggunakan perintah AT Command.

SPECIFICATION:

* 802.11 b/g/n protocol

* Wi-Fi Direct (P2P), soft-AP

* Integrated TCP/IP protocol stack

* Integrated TR switch, balun, LNA, power amplifier and matching network

* Integrated PLL, regulators, and power management units

* +19.5dBm output power in 802.11b mode

* Integrated temperature sensor

* Supports antenna diversity

* Power down leakage current of < 10uA

* Integrated low power 32-bit CPU could be used as application processor

* SDIO 2.0, SPI, UART

* STBC, 11 MIMO, 21 MIMO

* A-MPDU & A-MSDU aggregation & 0.4s guard interval

* Wake up and transmit packets in < 2ms

* Standby power consumption of < 1.0mW (DTIM3)

* Size: 13.2 x 21.1mm

Interface yg berhubungan:

* SDIO 2.0, SPI, UART

* 32-pin QFN package

* Integrated RF switch, balun, 24dBm PA, DCXO, and PMU

* Integrated RISC processor, on-chip memory and external memory interfaces

* Integrated MAC/baseband processors

* Quality of Service management

* I2S interface for high fidelity audio applications

* On-chip low-dropout linear regulators for all internal supplies

* Proprietary spurious-free clock generation architecture

* Integrated WEP, TKIP, AES, and WAPI engines

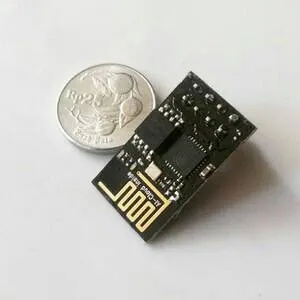

ESP8266 WiFi Module Arduino

Rp 26.930
