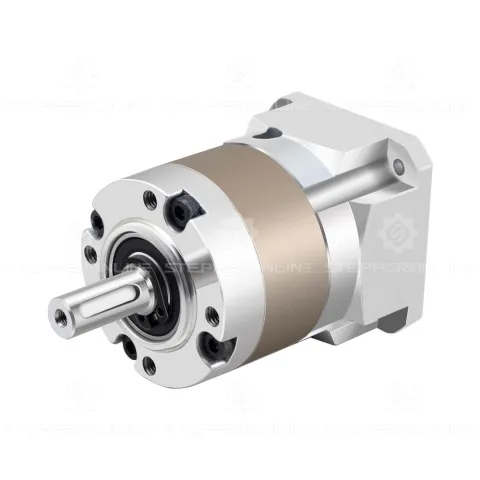

The size of this gearbox is 42 x 42mm and the input shaft diameter is 5mm. This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 10:1 and a maximum 15arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 17 stepper motor and brushless dc motor.

Gearbox Specifications

Part Number: EG17-G10

Gearbox Type: Spur Planetary

Gear Material: Alloy Steel

Gear Ratio: 10:1

Efficiency: 96%

Rotor Inertia: 0.03kg·cm²

Backlash at No-load: <=15arcmin

Max.Permissible Torque: 5Nm(44.25lb-in)

Moment Permissible Torque: 10Nm(88.51lb-in)

Noise: <=65dB

Waterproof Rating: IP54

Lifetime: 20000hours

Physical Specifications

Frame Size: 42 x 42mm

Gearbox Length: 55mm

Output Shaft Type: Key way

Output Shaft Diameter: Φ8mm

Output Shaft Length: 21.5mm

Input Shaft Diameter: Φ5mm

Input Shaft Length: 21.5-25mm
