INTRODUCTION

The microwave sensor applies the Doppler effect to detect moving objects using microwaves. This differs from the method used by a regular infrared (IR) sensor as microwave is sensitive to a variety of objects that are microwave-reflective, and its sensor readings are not affected by the ambient temperature.

This type of sensor is widely used in industrial, transportation and civil applications such as measuring vehicle speed, liquid levels, automatic door motion detection, automatic washing, production line material detection and car reversing sensors etc.

The microwave detection method has the following advantages compared to other methods:

Non-contact detection

Readings not affected by temperature, humidity, noise, air, dust or light - suitable for harsh environments

Strong resistance to radio frequency interference

Low output, urharmful to human

Wide detection range and high velocity

Supports non-living object detection

APPLICATIONS

The microwave sensor can be useful together with other sensors to enhance its measurement accuracy. For example, Microwave sensor could decrease the pseudo fault report rate of human motion detection. And it does a good job in safety & security work.

SPECIFICATION

Working Voltage : 5v + 0.25v

Working Current (CW): 60mA max., 37mA typical

Interface: Gravity 3-Pin interfaceDigital

Size: 48.5x63mm

Emission parameters:

Detection Distance: 2-16M continuously adjustable

Emission Frequency: 10.525 GHz

Precision Frequency Setting: 3MHz

Output Power (minimum): 13dBm EIRP

Harmonic Emission: < -10dBm

Average Current (5%DC): 2mA typ.

Pulse Width (Min.): 5uSec

Load Cycle (Min.): 1%

Reception Parameters:

Sensitivity:(10dB

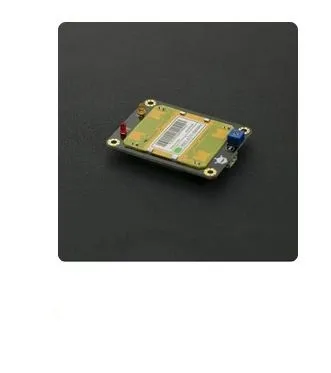

Digital Microwave Sensor (Motion Detection)
