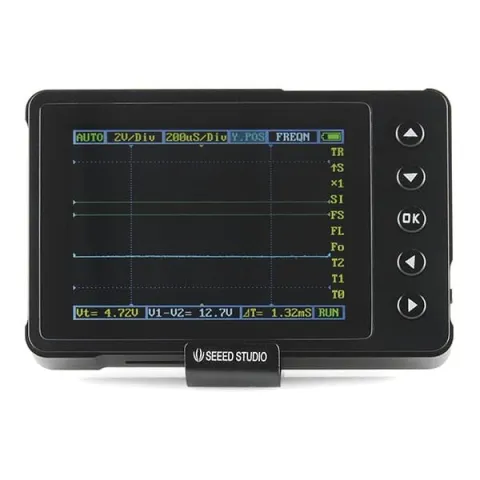

An oscilloscope is an awesome tool to have around the shop. Unfortunately, most scopes take up quite a bit of bench space and they're not very portable. The DSO Nano v3, on the other hand, is a 32bit digital storage oscilloscope that fits in the palm of your hand! Based on ARM -M3, it’s equipped with a 320x240 color display, internal 2MB storage, USB port and recharging function. It’s compact, simple to operate and perfect for everything from the test bench to field work.

The version 3 of DSO Nano differs from version 2 in that it does not use white plastic shell. Instead, it uses black metal shell which is more durable and rugged.

Portable and lightweight

Color display

Waveform storage and playback

6 triggering modes

200Khz Analog Bandwidth

Complete measurement markers and signal characteristics

Built-in Signal Generator

Analog bandwidth: 0 - 200KHz

Max sample rate: 1Msps 12Bits

Sample memory depth: 4096 Point

Input impedance: >500KΩ

Max input voltage: 80Vpp (by ×1 probe)

Trig modes: Auto, Normal, Single, None, Scan and Fit; Rising/Falling edge/level trigger; Trig level adjustable with indicator; Trig sensitivity adjustable with indicator.

Waveform Functions: Auto measurement: frequency, cycle time, duty cycle, peak voltage, RMS voltage, Average voltage and DC voltage; Precise vertical/horizontal measurement with markers; Hold/Run.

Signal Generator: 10Hz~1MHz square wave

Waveform storage: Internal 2MB Storage

PC connection via USB

91 x 62 x 13mm

DSO NANO V3

DSO NANO V3

Rp 1.750.000

Deskripsi
