The DS18B20 dig it al thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user programmable upper and lower trigger points.

The DS18B20 communicates over a 1-Wire bus that by definit ion requires only one data (and ground) for communication with a central microprocessor.

It has an operating temperature range of -55C to +125C and is accurate to 0.5C over the range of -10C to +85C. In addition, the DS18B20 can derive power directly from the data (parasite power), eliminating the need for an external power supply.

Each DS18B20 has a unique 64-bit serial code, which allows mult iple DS18B20s to funct ion on the same 1-Wire bus. Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area.

FEATURES

- Unique 1-Wire Interface Requires Only One Port Pin for Communication

- Each Device has a Unique 64-Bit Serial Code Stored in an On-Board ROM

- Multidrop Capability Simplifies Distributed Temperature-Sensing Applications

- Requires No External Components Can Be Powered from Data ; Power Supply Range is 3.0V to 5.5V

- Measures Temperatures from -55C to +125C (-67F to +257F)

- 0.5C Accuracy from -10C to +85C

- Thermometer Resolution is User Selectable

- Converts Temperature to 12-Bit Digital Word in 750ms (Max)

- User-Definable Nonvolatile (NV) Alarm Settings

- Alarm Search Command Identifies and Addresses Devices Whose Temperature is Outside Programmed Limits (Temperature Alarm Condition)

- Available in 8-Pin SO (150 mils), 8-Pin SOP, and 3-Pin TO-92 Packages

- Software Compatible with the DSApplications Include Thermostatic Controls, Industrial Systems, Consumer Products, Thermometers, or Any Thermally Sensitive System

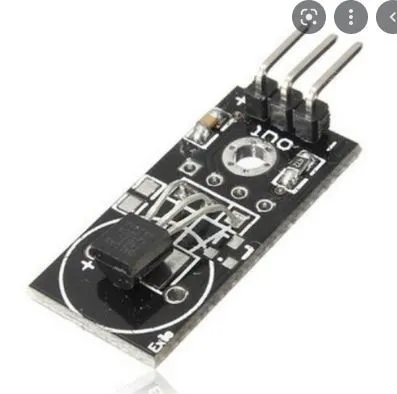

DS18b20 Digital Temperature Sensor suhu Module for Arduino Raspberry

DS18b20 Digital Temperature Sensor suhu Module for Arduino Raspberry

Rp 20.580

Deskripsi
