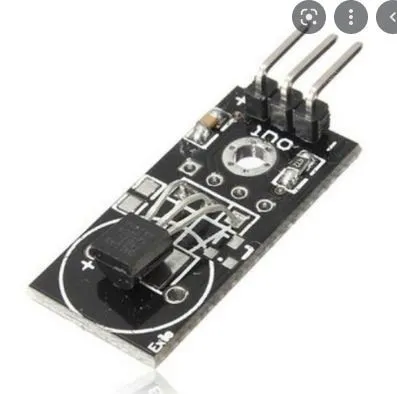

DS18B20 Temperature sensor module ds18b20 module

Ini merupakan modul DS18B20. Alternatif jika ingin mencari sensor suhu yang berbentuk module.

Berikut saya lampirkan link jenis DS18B20, barangkali antum membutuhkan juga :

- DS18B20 TO-92 (IC) = https://tokopedia.com/wdelectronic/ds18b20-to-92-digital-temperature-sensor-ic-ds18b20

- RobotDyn DS18B20 module, modul dengan kualitas yang bagus dengan harga yang terjangkau = https://tokopedia.com/wdelectronic/robotdyn-ds18b20-digital-temperature-sensor-ds18b20-module

- DFRobot DS18B20, modul premium untuk sensor ds18b20 = https://tokopedia.com/wdelectronic/dfrobot-gravity-waterproof-ds18b20-sensor-kit-original

- DS18B20 Waterprof satu meter = https://tokopedia.com/wdelectronic/ds18b20-water-proof-temperature-1m-kualitas-bagus

This DS18B20 Temperature Sensor Module For Arduino, a Digital temperature sensor DS18B20 will tell you, with 9 to 12-bit resolution! Uses only 1 wire to the Arduino or other micro-controller for communication. With the One Wire protocol, you can operate a large number of these sensors from one Arduino pin.

This is the latest DS18B20 1-Wire digital temperature sensor from Maxim IC. Reports C with 9 to 12-bit precision, -55C to 125C (+/-0.5C). Each sensor has a unique 64-Bit Serial number etched into it allows for a huge number of sensors to be used on one data bus.

Spesifications :

- IC Chip : DS18B20

- Input Supply Voltage (VDC) : 3 ~ 5.5

- Temperature Range(C) : -55 to +125

- Measuring Accuracy(C) : 0.5

- Resolution : 9bits to 12bits (Selectable)

- Dimension = 21x10x4mm

Package :

- 1x DS18B20 Temperature Sensor Module

DS18B20 Temperature sensor module ds18b20 module

DS18B20 Temperature sensor module ds18b20 module

Rp 15.000
