DFRobot URM14 200KHz ultrasonic distance sensor with 1mm accuracy(10~150cm, RS485) is a high-frequency precision ultrasonic sensor for industrial use. The sensor measurement and signal processing unit is completely encapsulated in an M18 metal shell and its tail is designed with an aviation connector plug. The sensor uses the RS485 interface that follows the standard Modbus-RTU communication protocol, which assures its compatibility with PLC industrial personal computer. Furthermore, the adoption of higher ultrasonic acoustic frequency and more precision signal processing circuit gives this URM14 sensor mm-grade accuracy and up to1.5m reliable measuring range. The only 12° measuring angle makes the sensor able to present the directional measurement characteristic similar to laser ranging sensors.

Features

RS485 communication interface based on standard ModbusRTU protocol, which is convenient for direct connection of industrial equipment;

High measurement accuracy and small error range;

With temperature compensation function, it is not easy to be disturbed by the measurement environment;

The built-in address instructions are rich and easy to modify;

Specification

Operating Voltage: DC 7-15V

Max Instantaneous Current: 350mA

Effective Measuring Range: 100-1500mm

Distance Resolution: 1mm

Distance Error: ±0.3%

Temperature Resolution: 0.1℃

Temperature Error: ±1℃

Measuring Frequency: 30HZ

Operating Temperature: -20℃～＋80℃

Sensor Acoustic Frequency: 200KHz±4%

Directional Angle: 12°±2°(-6dB)

Protection Grade: IP65

Communication Interface: RS485 ModBus-RTU

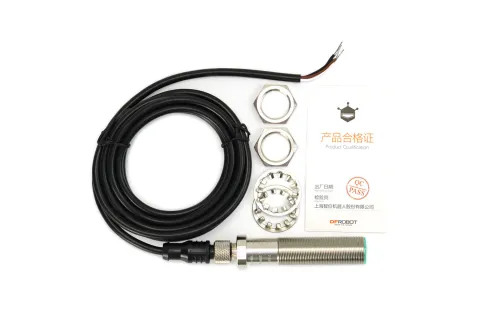

Shipping List

URM14 - Industrial Ultrasonic Distance Sensor with 1mm Accuracy (10~150cm, RS485) x1

Mounting Nut x2
