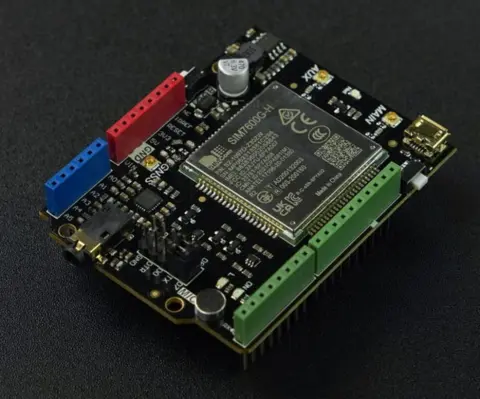

SIM7600G-H 4G (LTE) is an Arduino Shield that supports 2G/3G/4G, GNSS satellite positioning, and LTE CAT4 (150Mbps DL, 50Mbps UL). It features a standard Arduino pinout and is compatible with Arduino UNO, Leonardo, Mega, and other main controllers. It supports LTE-TDD/LTE-FDD/WCDMA/GSM frequency bands, GNSS positioning with GPS, CLONASS, BD, and other satellite systems, and includes multiple network protocols for global compatibility. This expansion board enables effortless high-speed internet access, wireless communication, audio recording/playback, telephone messaging, and global positioning functionalities.

Explanation: The SIM7600CE-T 4G (LTE) Arduino expansion board and the SIM7600G-H CAT4 4G Shield have only one difference—the module used. However, they both support the same frequency bands and GNSS positioning functionalities.

Features

Controlled through AT commands
Supports GNSS satellite positioning (GPS, CLONASS, BD)
Supports multiple frequency bands: LTE-FDD/LTE-TDD/WCDMA/GSM
SMS support for MT, MO, CB, Text, and PDU modes
Supports various network protocols:
TCP/IP/IPV4/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Enables dial-up networking, telephone, messaging, TCP, HTTP, and other functionalities
Features two LED status displays: power supply status and network status

Applications

Ideal for hobbyists for 4G communication learning and project development
Suitable for outdoor high-rate communication and positioning
Can be used for mobile tracking
Great for logistics tracking
Enables remote monitoring

Specification

Operating voltage: DC 5V
Supported network frequency bands: LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 GSM/GPRS/EDGE: 850/900/1800/1900 MHz
4G communication rate: CAT4 (uplink speed of 50Mbps, downlink speed of 150Mbps)
GNSS satellite navigation technology (GPS, BD, GLONASS)
Operating environment: -40°C to 85°C
Dimensions: 69×54mm
