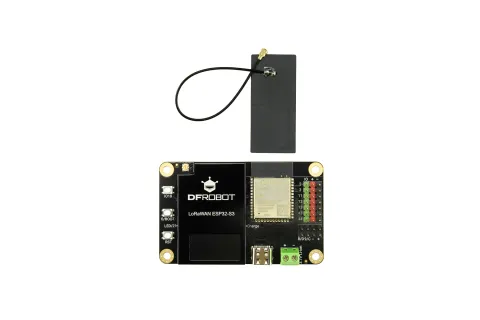

LoRaWAN ESP32-S3 Development Board is a long-range wireless development platform supporting LoRa, LoRaWAN, and Meshtastic. With built-in compatibility for HomeAssistant (ESPHome), an onboard display, buttons, power options, and multiple I2C ports, it offers a convenient solution for IoT deployment, testing, and portable applications.

Features

Supports LoRa, LoRaWAN, and Meshtastic long-range communication protocols

Supports integration with HomeAssistant (ESPHome), enabling the HomeAssistant system to support long-range communication

Equipped with ESP32-S3 main controller, supporting Arduino and YAML programming

Rich functions and high usability, significantly improving testing efficiency

Integrates a 0.96-inch screen and buttons for easy data viewing and display switching

Integrates multiple sets of power supplies and I2C interfaces for easy sensor device connection

Integrates a lithium battery interface and charging function for convenient portable use

Applications

LoRa/LoRaWAN deployment & debugging: View signal and status directly on screen
Large-area smart homes: Extend coverage to garden, garage, multi-floor areas
Outdoor monitoring: Use with temperature, humidity, PM2.5 sensors; send data to HomeAssistant
Agriculture / greenhouse: Monitor soil/light sensors and trigger irrigation remotely
Meshtastic chat: Off-grid text communication for hiking, camping, remote areas

Specification

Basic Parameters

Operating Voltage: 3.3V

Type-C Input Voltage: 5V DC

Maximum Charging Current: 300mA

Screen Size: 0.96 inches (160×80 pixels)

Operating Temperature: -10~60℃

Module Size: 73×45mm

LoRa Parameters

RF Chip: SX1262

Operating Frequency Band: 850~930MHz

Transmission Power: 16dBm (EU868) / 22dBm (US915)

Receiver Sensitivity: -137dBm / 125kHz SF=12

ESP32-S3 Parameters

Processor: Xtensa® dual-core 32-bit LX7 microprocessor

Clock Speed: 240MHz

SRAM: 512KB

ROM: 384KB

Flash: 4MB

Wireless Protocols: WiFi, Bluetooth 5

Shipping List

LoRaWAN ESP32-S3 Development Board x1
