This Gravity: GP8630N DAC module functions as a high-precision digital-to-analog converter, transforming I2C or PWM digital signals into stable analog voltage or current outputs. Built around the GP8630N chip, this converter addresses the need for versatile signal generation in industrial and robotics applications by supporting multiple output modes including ±10V, 0-5V, 0-10V, and 4-20mA. The 16-bit resolution ensures fine-grained control for sensitive equipment, making this module an essential tool for automated systems requiring accurate analog inputs.

Bidirectional Control with ±10V Symmetrical Output

Unlike conventional DACs that only provide positive voltage ranges, this 16-bit DAC module generates a symmetrical ±10V output. This feature allows for the direct control of bidirectional devices without requiring complex external bridge circuits. For instance, in servo motor applications, a +10V signal can drive forward rotation, -10V enables reverse rotation, and 0V actuates a stop, significantly simplifying the hardware design for motor drive systems and valve actuators.

Specification

Chip Model: GP8630N

Operating Voltage: 3.3V-5V

Power/Communication Interface: PH2.0-4Pin/3Pin

Input Signal: I2C / PWM

Output Signal:

Current Output Range: 0-24mA

Voltage Output Range: ±12V/0-6V/0-12V

Number of Channels: 1 channel

Resolution:

16-bit (I2C mode)

8-bit, 10-bit (PWM mode, selectable based on controller)

Full‑Scale Error: ±0.2% (measured after fitting calibration)

Value Range:

I2C Mode: 0-65535 corresponds to ±12V, 0-6V, 0-12V, or 0-24mA

PWM Mode: 0-255 or 0-1023 corresponds to output range

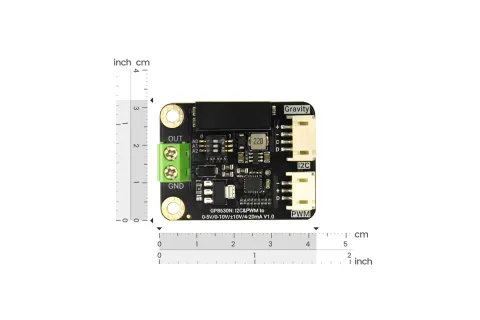

Physical Dimensions

PCB Dimensions: 42 × 32 × 12.39 mm

Mounting Hole Spacing: 25mm

Mounting Hole Diameter: 3.0 mm

Shipping List

Gravity: GP8630N 1-Channel I2C & PWM to ±10V / 0-5V / 0-10V / 4-20mA DAC Module ×1

Gravity-4Pin I2C/UART Sensor Cable ×1

Gravity-3Pin Analog Sensor Cable ×1

DFRobot Gravity GP8630N I2C/PWM to ±10V / 4-20mA DAC Module (16-bit)

DFRobot Gravity GP8630N I2C/PWM to ±10V / 4-20mA DAC Module (16-bit)

Rp 469.812
