Applications

UAVs & Drones: Precise altitude hold and vertical speed calculation.

Weather Stations: Rugged outdoor pressure and temperature monitoring.

Sport Tech: Altimeters for hiking, climbing, or cycling computers.

IoT Devices: Floor detection for indoor navigation and asset tracking.

Smart Home: HVAC airflow monitoring and weather prediction.

Specification

Basic Parameters

Operating Voltage: DC 3.3~5V

Operating Current: 700μA

Communication Interface: I2C / UART

Interface Form: PH2.0-4P (Gravity Pinout) / 2.54mm Pin Header Socket

I2C Address: 0x47 (Default) / 0x46

BMP585 Parameters

Pressure Measurement Range: 30 ~ 125 kPa

Temperature Measurement Range: 0 ~ 65 °C

Absolute Pressure Accuracy: ±0.3 hPa (Typ.)

Relative Pressure Accuracy: ±0.06 hPa / 10 kPa (Typ.)

Relative Altitude Accuracy: ±0.5 m / 10 kPa

Temperature Drift Coefficient: ±0.5 Pa / K

Pressure Data Resolution: 1 / 64

Ultra-Low Noise: < 0.1 Pa (RMS, without low-pass filter enabled)

Physical Dimensions

PCB Dimensions: 32 × 27 × 7.18 mm

Mounting Hole Spacing: 25 × 20 mm

Mounting Hole Diameter: 3.0 mm

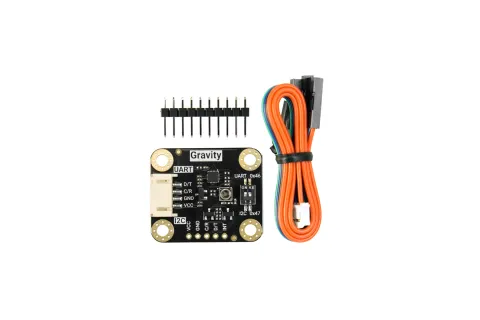

Shipping List

Gravity: BMP585 High-Precision Barometric Pressure & Temperature Sensor ×1

PH2.0-4P Sensor Connection Cable ×1

10pin-2.54 Black Single Row Pin Header ×1

DFRobot Gravity BMP585 High-Precision Barometric Pressure & Temperature Sensor (I2C / UART)

Rp 411.589
