This module is a compact, easy-to-integrate wireless communication solution tailored for long-distance, low-power outdoor IoT scenarios. Based on the SX1262 chip and LoRa modulation technology, it operates in the US915 frequency band (also applicable to EU868 in other versions) and supports both LoRa point-to-point and LoRaWAN networking. With an effective urban transmission range of up to 1.5 kilometers and 4.5 kilometers in open environments, it enables reliable, wide-area data transmission without the need for traditional wired infrastructure. Ideal for agriculture, environmental monitoring, and industrial sensing projects.

Applications

Farm condition monitoring

Greenhouse temperature and humidity sensing

Beehive monitoring

Ecological area data collection

LoRaWAN-enabled weather stations

Specification

Electrical & Interface

Operating Voltage: 3.3V to 5V DC

Communication Interfaces: UART and I2C

Connector Type: PH2.0-4P

Logic Level Compatibility: 3.3V / 5V

Mechanical

Board Dimensions: 42 × 62 mm (1.65 × 2.44 in)

Mounting Hole Diameter: 3.0 mm (0.12 in)

Mounting Hole Spacing: 35 mm (1.38 in)

Net Weight: 10 g (0.35 oz)

Wireless Communication (LoRa)

RF Chip: Semtech SX1262

Operating Frequency: 915 MHz

Supported Regions: North America and other regions using the US915 frequency band

Modulation: LoRa

Spreading Factor: SF7 to SF12

Max Transmit Power: +22 dBm

Receiver Sensitivity: -137 dBm (SF12 @ 125 kHz bandwidth)

Shipping List

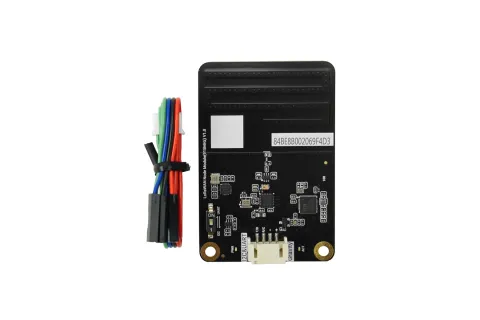

Gravity: LoRaWAN Node Module (915MHz) ×1

PH2.0-4P connection cable ×1
