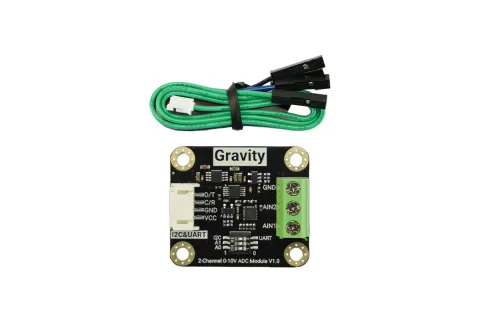

The Gravity: 0-10V 15-Bit High-Precision ADC Module combines dual-channel 0-10V input with I2C and UART interfaces, offering unmatched flexibility for Arduino, Raspberry Pi, and ESP32 users. Featuring 15-bit resolution (0.3125mV accuracy) and the Texas Instruments ADS1115 chip, it bridges industrial 0-10V sensors (e.g., pressure transducers, energy meters) with low-voltage microcontrollers. Perfect for automation, environmental monitoring, and IoT systems requiring stable, noise-resistant signal conversion.

Industrial-Grade 0-10V Sensor Compatibility

15-bit Resolution with Enhanced Accuracy

Flexible Communication Interfaces (Dual I2C and UART protocols)

Applications

Industrial Automation: Real-time monitoring of pressure, flow rate, and temperature in manufacturing pipelines.
Environmental Monitoring: Precise measurement of water quality parameters, wind speed, and humidity in outdoor stations.
Energy Management: Tracking voltage signals from energy meters or solar inverters for consumption analysis.

Specification

Chip: ADS1115
Input Range: 0-10V
Resolution: 15-bit (0.3125mV)
Accuracy: ±2mV
Communication: I2C/UART
Supply Voltage: 3.3-5V DC

Shipping List

Gravity ADC Module ×1
Gravity-4P I2C/UART Cable ×1
