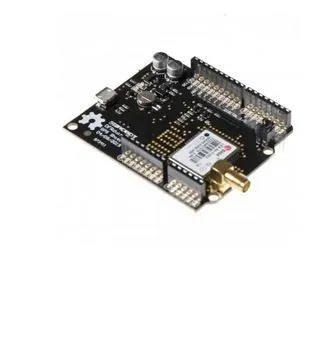

DFRduino GPS Shield for Arduino has now been updated to ublox LEA-6H.

The LEA-6H is a high performance stand-alone GPS and GALILEO receiver module designed to allow easy, straightforward migration from its LEA-4 predecessors. It features u-blox' KickStart weak signal acquisition technology, as well as flexible connectivity options. The LEA-6H comes with built-in Flash memory that enables firmware updates and the storage of specific configuration settings in a non-volatile RAM. The built-in antenna supervisor supports external and active antennas, such as u-blox' ANN high performance GPS antenna.

u-blox KickStart provides accelerated startup at weak signals, and our featured SuperSense® Indoor GPS is capable of tracking and acquiring even extremely weak signals. This makes the LEA-6H suitable for solutions using small or covert antennas.

Suggestion: Customers can buy TEL0042 Built-in GPS Antenna to equip this GPS shield and maximize its power.

Specification

Power supply 2.7 V – 3.6 V

Power consumption 117 mW @ 3.0 V (continuous)

33 mW @ 3.0 V Power Save Mode (1 Hz)

Backup power 1.4 V – 3.6 V, 22 μA

u-blox 6 position engine:

Navigate down to –162 dBm and –148 dBm coldstart

Faster acquisition with AssistNow Autonomous

Configurable power management

Hybrid GPS/SBAS engine (WAAS, EGNOS, MSAS)

Anti-jamming technology

A-GPS: AssistNow Online and AssistNow Offline services, OMA SUPL compliant

Supports GLONASS, Galileo ready (LEA-6H)

Backward compatible (hardware and firmware); easy migration from LEA-5 or LEA-4 families

Based on GNSS chips qualified according to AEC-Q100

Manufactured in ISO/TS 16949 certified sites

LCC package for reliable and cost effective manufacturing

Operating temperature range: –40°C to 85°C

1 UART, 1 USB and 1 DDC (I2C compliant) interface

Navigation update rate up to 5 Hz (ROM version), 2 Hz (Flash)

Accuracy：

Position 2.5 m CEP

SBAS 2.0 m CEP
