This is a sensor that detects hydrogen chloride concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of hydrogen chloride in the environment. Can be widely used in the detection of hydrogen chloride in the industrial, underground, and environmental protection fields.

The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years. The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino, ESP32, and Raspberry Pi. The easy-to-use Gravity interface, coupled with our sample code, can quickly build a hydrogen chloride concentration detector.

Features

Strong anti-interference ability
High stability
High sensitivity

Applications

Industrial hydrogen chloride detection
Underground hydrogen chloride detection
Environmental protection device

Specification

Detection Gas: Hydrogen chloride (HCL)
Detection range: 0~10ppm
Working Voltage: 3.3～5.5V DC
Working Current: ＜5mA
Output Signal: I2C, UART (0~3V), analog voltage
Working Temperature: -20～50℃
Working Humidity: 15～90%RH (non-condensing)
Storage Temperature: -20～50℃
Storage Humidity: 15～90%RH (non-condensing)
Lifespan: >2 years (in the air)
Adapter Plate Size: 37*32mm
Compatibility: Arduino, ESP32, Raspberry pi

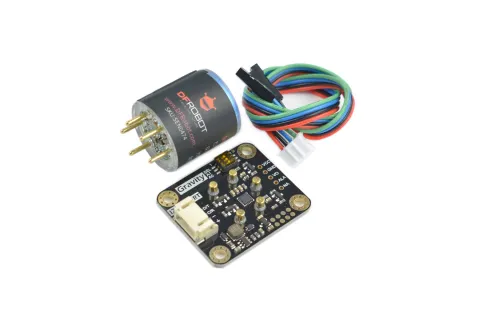

Shipping List

Gravity: HCL Signal Conversion Board x1
HCL sensor probe x1
Gravity - 4pin Cable x1
