Utk produk DFRobot detailnya bisa dicek di situs DFRobot

This is an Arduino-compatible TDS sensor/Meter Kit for measuring TDS value of the water, to reflect the cleanliness of the water. It can be applied to domestic water, hydroponic and other fields of water quality testing. You may also check Liquid Sensor Selection Guide to get better familar with our liquid sensor series.

TDS (Total Dissolved Solids) indicates that how many milligrams of soluble solids dissolved in one liter of water. In general, the higher the TDS value, the more soluble solids dissolved in water, and the less clean the water is. Therefore, the TDS value can be used as one of the references for reflecting the cleanliness of water.FEATURES

Wide Voltage Input: 3.3~5.5V

Good Compatibility Output: 0~2.3V analog signal output, compatible with 5V or 3.3V controller

AC Excitation Source: effectively prevent probe from polarization

Waterproof Probe

Easy to Use: Arduino compatible, simple connection, plug and play without soldering

SPECIFICATION

- Signal Transmitter Board

- Input Voltage: 3.3 ~ 5.5V

- Output Voltage: 0 ~ 2.3V

- Working Current: 3 ~ 6mA

- TDS Measurement Range: 0 ~ 1000ppm

- TDS Measurement Accuracy: ± 10% F.S. (25 ℃)

- Module Size: 42 * 32mm

- Module Interface: PH2.0-3P

- Electrode Interface: XH2.54-2P

TDS probe

- Number of Needle: 2

- Total Length: 83cm

- Connection Interface: XH2.54-2P

- Color: Black

- Other: Waterproof Probe

https://www.dfrobot.com/product-1662.html

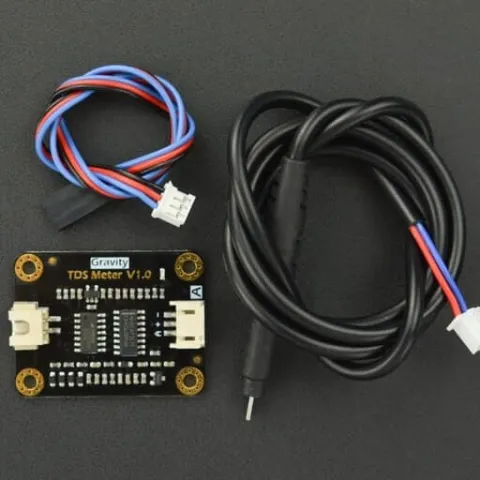

DFROBOT Analog TDS Sensor/Meter for Arduino

DFROBOT Analog TDS Sensor/Meter for Arduino

Rp 22.500

Rp 220.000
