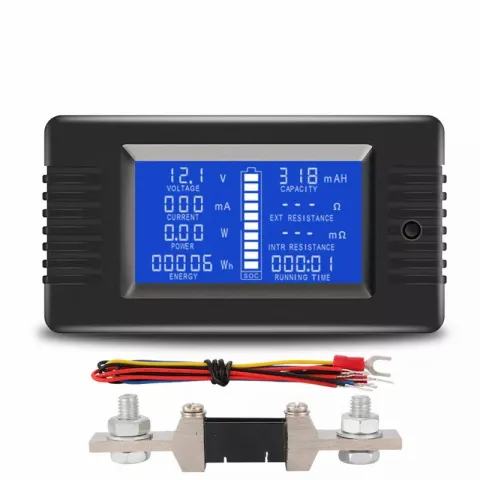

BATTERY / SOLAR CELL / DC POWER MONITORING, 6 in 1 METER, VOLT AMPERE WATT KWH METER MAX. 200A DC

VARIAN:

-----HOST PZEM015

----PZEM 015 50A

-----PZEM 015 100A

----PZEM 015 200A

-----PZEM 015 300A

The New version details

Specifications

- The working voltage: 6.5 ~ 200VDC

- Max power: 300A/10000W (like varian)

- Measurement precision: class 1

About function

- Measure and monitor the electrical parameters (voltage, current, kWh, watt)

- Overload alarm function (more than watt alarm threshold , backlight flashing)

- Power alarm threshold preset function (can set up their own power alarm threshold)

- Power(kWh) button reset function

- When power off, store the data, when on, continue the date

- Large screen LCD liquid crystal screen full display function (voltage, current, kWh, watt)

- Backlight function

About Display

Display interface. By the large screen LCD display LCD monitor voltage and current, kWh, watt, electric parameters

- Watt: the measurement range of 0~10kW

less than 1kW: 0.0~999.9W

less than 10kW: 1000~9999W

- kWh: the measurement range of 0~9999kWh

less than 10kWh: 0~9999Wh

more than 10kWh:10~9999kWh

- The test voltage range of 6.5-200V DC

Display format 6.50~99.99V

- Current test range: 0~300A optional (like varian)

Display format 0.00~199.99A

DC watt meter PZEM-015 200V 50A 100A 200A 300A peacefair Battery analyzer KWH

Rp 152.500
