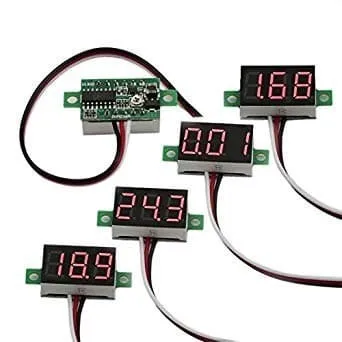

DC 3 Wire 0,28 LED Digital Display Panel Volt Meter RED

Product features

3 Wires. Able to measure the voltage that is below 3V. Measurement Accuracy: 1%

Display: Three 0.36" digital LED Tube. Display Color: Red. Measure Voltage: DC 0~30V. Working Voltage: DC 3V-30V

Reverse Polarity Protection: The meter won't burn out if reverse polarity is applied, but the screen will display nothing

Can be calibrated. The screw on the back is used to calibrate the reading

Operating Temperature: 14 ~ 149 °F(-10 ~ 65 °C)

Product description

Features:

Cutting size: 23mm x 14mm/0.9" x 0.55", Thickness: 10mm/0.39"

Mounting Hole Center Distance: 28mm

Measure Voltage: DC 0~30V

Working Voltage: DC 3V-30V

Measurement Accuracy: 1% (+ / - 2 digit)

Display: Three 0.36" digital LED Tube

Display Color: Red

Refresh Rate: about 500mS / times

Operating Temperature: 14 ~ 149 °F(-10 ~ 65 °C)

Reverse protection: Yes

When measured voltage is below 10V: the voltmeter displays two decimal digits, for example, 5.32V

When measured voltage is larger than 10V, the voltmeter displays one decimal digit, for example, 10.5V

Wiring:

Red wire: Power supply +

Black wire:Power supply -, Measured Voltage -

White wire: Measured Voltage +

Package Includes:

1x DC 0-30V Voltmeter

Jika warna

DC 3 Wire 0,28 LED Digital Display Panel Volt Meter RED

Rp 20.580
