Deskripsi Battery analyzer Feacefair PZEM-015 voltmeter ammeter batrai monitor

Description:

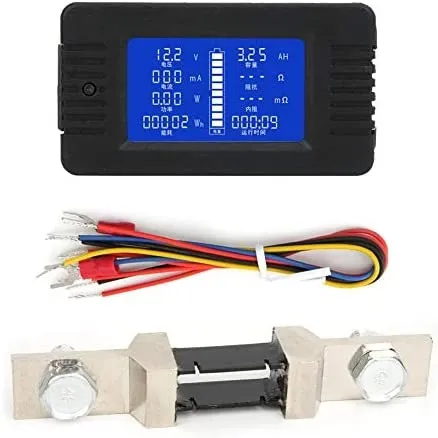

Feacefair PZEM-015 with 50A, 100A, 200A, 300A shunt

9 major functions

Full viewing angle LCD

Screwless installation

Size: 89.6x49.6x24.25mm

Display size: 51x30mm

This meter is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, running time of various types of batteries, and display measurement data through LCD.

Current : 0-300A ;1A shows 999mA

Voltage : 0-200V ;10V display 9.99V

Power : 0-60000W ;10W display 9.99W

Energy consumption : 0-9999kWh ;1kWh display 999Wh

Impedance : 0-1000 Ω ;100 Ω; shows 99.9 Ω

Capacity : 0-1000AH, 1AH shows 999mAH

Internal resistance : 0-999mΩ; format: 999mΩ

Running time range: 0-999 hours, format 0:00:00~999:59 (overflow to 0)

Remaining battery power: Displayed by the battery symbol, a total of 10 grids, each grid represents 10% of the electricity.

Package included:

1 x PZEM-015 Battery Tester

1 x 50/100/200/300A current shunt sesuai Variant yang dipilih

1 x English manual

Battery analyzer peacefair PZEM-015 50A 100A 200A 300A

Battery analyzer peacefair PZEM-015 50A 100A 200A 300A

Rp 229.560

Rp 299.880
