RS485 Date Signal Power Arrester Anti Surge Protector Monitoring CCTV Camera Lightning Protection Device Thunder Preventer

Material:Shielded Aluminum Alloy

Large discharge current capacity,

multi-level protection,

quick response and small insertion loss.

Functions:

It is applicable to protect video signal, power supply signal, telephone and network signal

It is applicable to protect the data signal in the intelligent control system and DDN special line (such as RS485 signal)

Technical Details:

Function Protection: Data Lightning Protector Device

Material: Aluminium Alloy

Insert Loss: 0.3dB

Response Time: <0.5ns

Working Temperature: -60 degree - +190 degree

Max Discharge Current: 10KA

Dimension: 48*25*25mm

Work Voltage: 5V

Limited voltage: 8.8V

Installation and maintenance:

In means the input end while out means the output end; the input end is connected with the transmission line while output end is connected with the equipment.

A protection device is connected at the equipment end of signal output source and input end of protected equipment in a serial manner.

The earthing guide wire is connected with the earthing busbar or lightning-proof system reliably.

Special maintenance is not needed for the protection device; please replace immediately in case of damage by high voltage or lightning

3 Include

1 x Protector

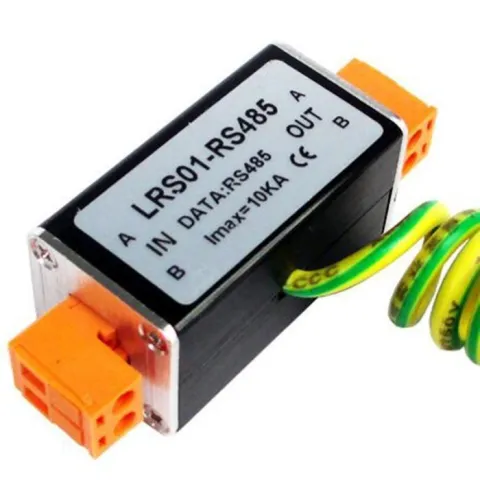

Arester RS485 Surge Arrester LRS01-RS485 Surge Ptotector RS485

Arester RS485 Surge Arrester LRS01-RS485 Surge Ptotector RS485
