What's the difference between Raspberry Pi and Arduino?

We all know Raspberry Pi is a mini-computer running on Linux operating system; while Arduino is a microcontroller running on simple I/Os. Both of them focuses on very different areas. Compared with Arduino, the Pi gets much better computing performance.

So What happens when a Raspberry Pi meets an Arduino?

A simple example would be, when building a mobile robot, we use the Raspberry Pi to extend its vision and get a nice tiny monitor. Meanwhile, Arduino handle nicely with the motor driving part and delivers fast responses like obstacle avoidance. Because, without the OS, the response time of rapid changes on the Arduino is much shorter. Also the high performance Pi can deals much easily with wireless communications, imaging and running complex algorithm.

Therefore, with the Arduino and Pi together, you get a powerful brain and cerebellum for your project, at one time.

SPECIFICATION

Onboard Microcontroller: ATmega32u4

Arduino Leonardo Chip

Arduino Compatible pin mapping

Compatible with All arduino standard shield and sensors

System Voltage: 5v

Arduino Digital I/O: 20

Arduino Analog I/O: 6

Raspberry Pi B+ GPIO: 16

Raspberry Pi B+ I2C: 1

Raspberry Pi B+ ID_I2C: 1

Raspberry Pi B+ SPI: 1

Raspberry Pi B+ TTL UART: 1

Dimension: 86mm x 61mm x 26mm (3.46" x 2.20" x 1.02")

https://www.dfrobot.com/product-1211.html

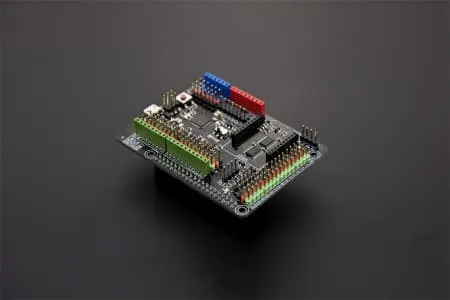

Arduino Shield for Raspberry Pi B+/2B/3B/3B+

Arduino Shield for Raspberry Pi B+/2B/3B/3B+

Rp 393.960

Deskripsi
