“pH stands for the power of hydrogen, which is a measurement of the hydrogen ion concentration in the body. The total pH scale ranges from 1 to 14, with 7 considered to be neutral. A pH less than 7 is said to be acidic and solutions with a pH greater than 7 are basic or alkaline.”

Note: Buffer solutions are not included.

After you received your package! You may found some white particles on the protection foam which is the KCl crystallization from the cap. Please don't worry about the crystallization in the packing box, that's normal. Actually, since the transportation restriction on liquid, we have poured out the KCL3N solution in the cap, the slight crystallization in the packing box should be leaked since the remnant. Anyway, once you received the probe, you should store it in KCL3N solution, you can not leave it in dry circumstances.

APPLICATIONS

Water quality testing

Aquaculture

SPECIFICATION

Module Power: 5.00V

Module Size : 43 x 32mm(1.69x1.26")

Measuring Range :0 - 14PH

Measuring Temperature: 0 - 60 ℃

Accuracy : ± 0.1pH (25 ℃)

Response Time: ≤ 1min

pH Sensor with BNC Connector

pH2.0 Interface (3-foot patch )

Gain Adjustment Potentiometer

Power Indicator LED

PROJECTS

Project 1. Arduino Project: pH sensor Working, application & Calibration "Water Quality Monitoring"

Introduction: This tutorial is about how to use the pH sensor with Arduino and find the pH value of different liquids “Water, Milk and Cold rink”, and display the pH value on the serial monitor.

DOCUMENTS

Wiki (PH meter)

pH and EC Probe Holder 3D Model (by Rayuela)

Schematic

PCB layout

PH composite electrode manual

Arduino sample code / ph sensor arduino

Zips for all above

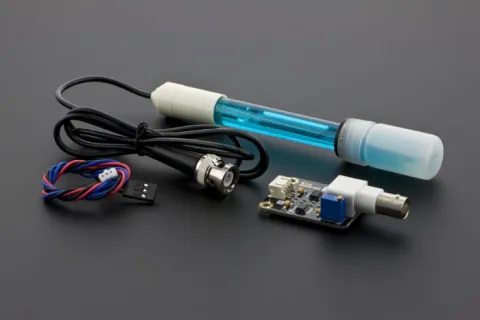

SHIPPING LIST

Gravity: Analog pH Sensor / Meter Kit For Arduino x1

pH probe (BNC connector) x1

pH sensor circuit board x1

Analog cable x1

Analog pH Sensor / Meter Kit For Arduino

Analog pH Sensor / Meter Kit For Arduino
