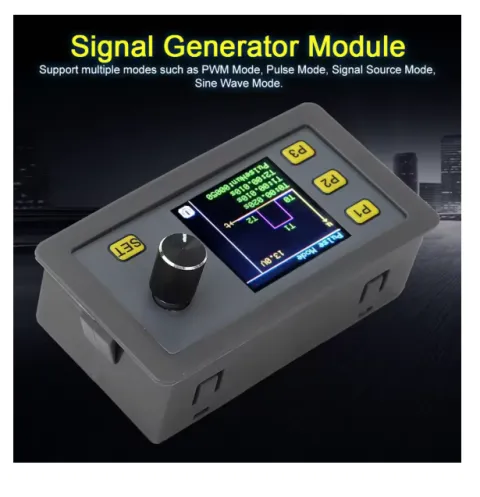

1. Multifunctional adjustable signal generator.
2. Supports multiple modes such as PWM mode, pulse mode, signal source mode and sine wave mode.
3. Voltage, frequency and duty cycle are adjustable in PWM mode.
4. Strong signal resilience, output current up to 30mA
5. Clear screen, clear control panel layout.

Specification:
Item Type:Signal Generator Module
Model: WSFG-06
Supply voltage: 7-24V
Product function: PWM mode, pulse mode, source mode, sine wave mode
PWM mode: voltage, frequency, duty cycle are adjustable, accuracy up to 0.1%; voltage range: 1-24V, frequency range: 1-150KHz, working cycle range: 0-100%
Pulse mode: initial delay time T0:0-60s, high level time T1:0-60s, low level time T2:0-60S, pulse count pulseNow:1-60000
Signal source mode: voltage source 2-10V, power source 4-20mA.
Sine wave mode: 1-1000Hz.
Signal load capacity: output current up to 30 mA (note: this product emits a signal source and cannot directly drive the high-performance load)
Ambient temperature: -10 to +70 °C.
Module size: 79 x 43 x 41 mm / 3.11 x 1 69 x 1.61 inches.
Opening size: 76 x 39 mm / 2.99 x 1.54 inches.

Package list:
1 x signal generator module.
