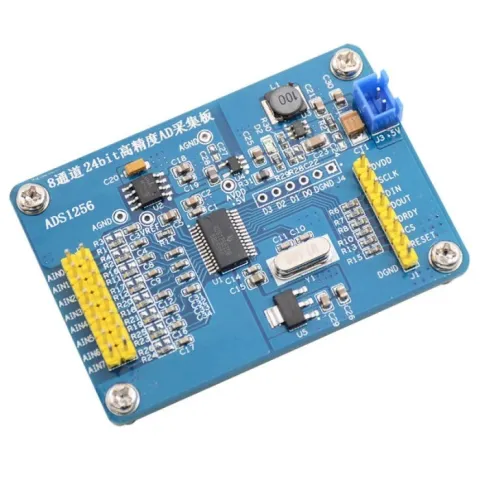

ADS1256 Module 24 Bit ADC AD Module High-precision ADC Data Acquisition Card

Description:

1 power input terminal, the upper is ground, the lower end is +5V.

2.LT3461 power chip, high ripple noise rejection ratio.

3 power indicator light.

4.LP2985, LDO can effectively suppress the low frequency noise, produces a very pure +5V, to provide analog power for the ASD1256

5.ADR431BRZ, B series for high precision benchmark. Reference chip to produce a high precision 2.500000V benchmark

6 benchmark test hole.

7 analog inputs, AIN0-AIN7 a total of eight input ports, can be regarded as 8 independent single input, can also do a 4 differential input, AIN0 and AIN1 as a group, AIN2 and AIN3 AIN4 and AIN5 AIN6 and AIN7.

8 analog grand input port

9 input resistance and attenuation resistance. Decay resistance is not welded by default.

10.ADS1256 master chip.

11.AMS1117-3.3v, to provide digital voltage for ADS1256.

12.The brand of NSK crystal, 7.68MHZ

13 communication interface with MCU.

Package Included:

1 * ADS1256 module
