This board has taken all the IO ports of the STM32F103C8T6 microcontroller, and users can develop their own functions. The program can be downloaded through the serial port. The AD chip has a reference voltage of 2.5V and is generated by a precision voltage regulator.

A potentiometer is provided on the board to test the AD input. The voltage generated by the voltage divider of the potentiometer is connected to AN0 through the S3 jumper, which is suitable for debugging the board without the sensor. If you do not use this test, you can take the S3 jumper off and input the test voltage directly from AN0--AN7. (The voltage input to the AD input cannot be higher than 5V).

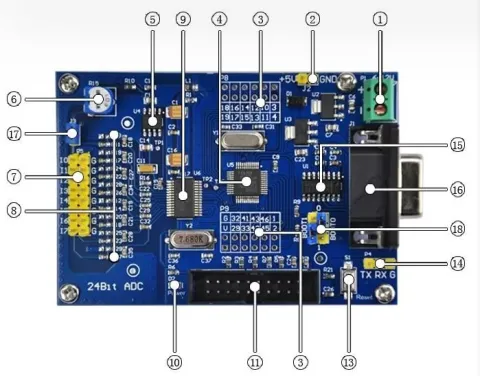

Power input terminal, input voltage range 5.5V - 12V (5V power supply, please connect directly to 2);

5V power supply input terminal (1.2 two power supplies, only one can be connected);

STM32F103C8T6 leads GPIO, which is convenient for secondary development. The silk screen directly corresponds to the pin number of the chip;

Brand new original master MCU: STM32F103C8T6;

2.5V benchmark, ultra-high precision, low temperature drift;

Adjustable potentiometer, the output adjustable voltage is linked to AIN0/ I0;

Collect 8 channels of input, I0-I7 is connected to the positive terminal of the acquisition voltage, G is the analog ground, and the negative terminal of the acquisition voltage is connected;

Input filter and attenuation resistor, default is not attenuated, leaving the position of solder attenuation resistor, 0603 package;

ADS1256IDB acquisition chip, new original imported;

Power indicator LED;

JTAG interface, designed according to JLINK-V8 or V9 definition;

Not marked;

STM32F103C8T6 reset button;

USB to TTL wiring, corresponding to the MCU's TX, RX, GND, can communicate directly with the computer;

ADS1256 24 bit AD High Precision ADC STM32F103C8T6 Module

ADS1256 24 bit AD High Precision ADC STM32F103C8T6 Module
