AD586 – High Precision 5V Reference IC – DIP-8 Package

The AD586 represents a major advance in state-of-the-art monolithic voltage references. Using a proprietary ion-implanted buried Zener diode and laser wafer trimming of high-stability thin-film resistors, the AD586 provides outstanding performance at low cost. The AD586 offers much higher performance than most other 5 V references. Because the AD586 uses an industry-standard pinout, many systems can be upgraded instantly with the AD586. Tags, AD586, AD586JRZ, AD586LRZ, AD586MNZ, AD586KRZ, AD586ARZ .

Features:

Laser trimmed to high accuracy
5.000 V ±2.0 mV (M grade)
Trimmed temperature coefficient
2 ppm/°C max, 0°C to 70°C (M grade)
5 ppm/°C max, −40°C to +85°C (B and L grades)
10 ppm/°C max, −55°C to +125°C (T grade)
Low noise, 100 nV/√Hz
Noise reduction capability
Output trim capability
MIL-STD-883-compliant versions available
Industrial temperature range SOICs available
Output capable of sourcing or sinking 10 mA

Features/Specs:

Manufacturer: Analog Devices Inc
Manufacturer Part No: AD586
Series: AD586
Product Type: Voltage References
Reference Type: Series Precision References
Output Voltage: 5V
Initial Accuracy: 0.04 %
Temperature Coefficient: 25 PPM/°C
Series VREF – Input Voltage: 36V
Shunt Current: 10 mA
Operating Temperature Range: -55°C ~ +125°C
Accuracy: 400 uV/mA
Input Voltage: 36V
Load Regulation: 400 uV/mA
Output Current: 10 mA
Mounting Style: Through Hole
Package/Case: PDIP-8

Datasheet: AD586 IC-High Precision 5V Reference IC

Package Includes:

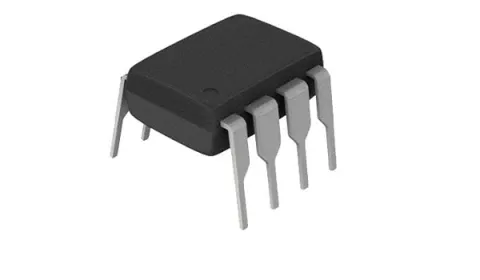

1 x AD586 – High Precision 5V Reference IC – DIP-8 Package

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
