Product Description

Material: Aluminum alloy, therefore extra flexible with low bearing loads and lightweight for low inertia

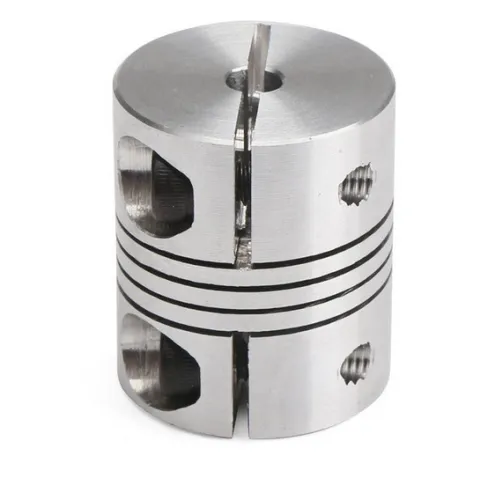

Product Type: Clamp beam coupling

Dimensions: large Bore: 8mm(5/16 inch), Small Bore: 5mm(13/64 inch), Outer Diameter: 20mm(25/32 inch), length: 25mm(63/64 inch)

Cap Screw: M3

Nuber of Screws: 2 ea

Angular Misalignment: ≤ 2°

Parallel Misalignment: +0.20mm/-0.20mm

Rated Torque: 0.5Nm

Maximum Torque: 1.0Nm

Maximun Rotatonal Speed: 19000RPM

Application: It is one-piece metallic flexible coupling for step motor connect, servo applications and also the most common applications are attaching encoders to shafts and motion control for robotics.

Notes

Note 1: Performance ratings are for guidance only. The user must determine suitability for a particular application

Note 2: Coupling torque and torsional stiffness are determined by the largest bore selected.

Note 3: Torque ratings for the couplings are based on the physical limitations/failure point of the machined beams.

In some cases, especially when the smallest standard bores are used or where shafts are undersized, slippage on the shaft is possible below the rated torque of the machined beams.

Product Dimensions: 1.2×1×1 inches, 2.1 ounces

Package Dimensions: 5×4×3 inches, 4.5 ounces

5x8mm CNC Motor Shaft Coupler 5mm to 8mm Flexible Coupling

5x8mm CNC Motor Shaft Coupler 5mm to 8mm Flexible Coupling
