Features:

L298P shields DC motor driver uses special L298P chip for high power motor, which can directly drive two DC motors.

The motor output uses 8 high-speed diodes as protection.

Board has L298P motor drive chip, use digital IO port on motherboard directly (D10. D11.D12.D13) and no need cumbersome wiring.

The sound of buzzer (D4) on board can be set as vehicle back up alarm.

Convenient motor port can be divided into two motor output .

Two channel Bluetooth interface can be directly plugged in without wiring.

It has seven unoccupied digital interface (D2, D3, D5, D6, D7, D8, D9) and six analog interface (A0 ~ A5).

Indicator for forward, backward and turn around.

Support PWM/PLL motor speed control mode.

It can access control signal through pins.

The drive current can be up to 2A.

Specifications:

Logic Part Input Voltage(VD): 5V

Driving Part Input Voltage(VS): VIN input 6.5V~12V, PWRIN input 4.8V~35V

Logic Part Working Current(Iss): <36mA

Drive Part Working Current(Io): <2A

Max. Dissipation Power: 25W(T = 75℃)

Control Signal Input Level: High level 2.3V<5V, low level -0.3V<1.5V

Operating Temperature: -25℃ to +130℃

Hardware Interface: 5.0mm spacing terminal

Drive: Dual channel high power H bridge drive

Pin: D4~D7 directly drive motor

Size: 68 x 53mm / 2.67 x 2.08"

Package Includes:

1 x Module

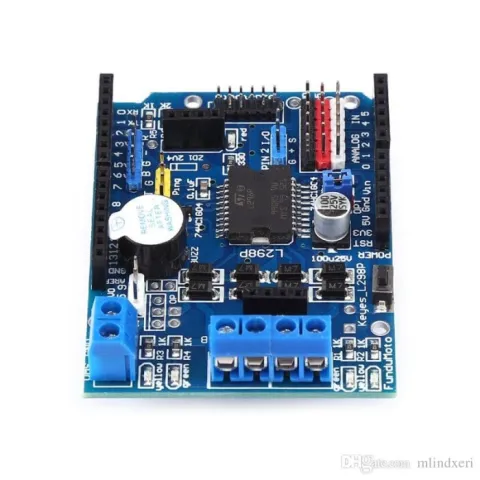

5V L298P Motor Drive Shield board

Rp 164.052
