Spesifikasi:

1. Five channel flame sensor design, wide range of detection (the detection range of the ordinary single flame sensor is probably about 30Degree, as the distance increases, the range is gradually reduced, the detection range of the product is greater than 120Degree)

2. Able to output a digital signal (high and low), easy to use

3. Able to output an analog signal (voltage signal), the measurement signal can be more accurately, the occasions for high precision

4. All five outputs status indicator, so whether debug or bring great convenience in the practical application.

5. Visit Tokoduino dot com

6. Digital output detection distance adjustable.The analog output sensitivity adjustable, more flexible design

7. Using 1% resistor design, signal output is more accurate, suitable for the needs of high-precision measurement occasions.tduino

8. Onboard M3 mounting holes for easy installation

9. 3.3V-9V power supply, and is compatible with most of the minimum system

Prinsip Kerja Sensor:

The item is able to detect the flame band respectively in the range of 700-1100 nm, short-wave near-infrared (SW-NIR), and is output via an electric signal (voltage signal).

Aplikasi:

- All occasions flame detection needs

- Use Case:

- Fighting robot

- Fire alarm

Kelengkapan:

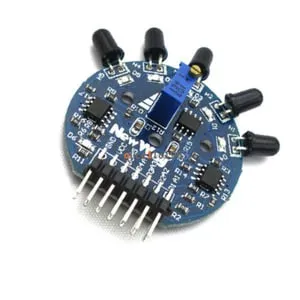

1pcs 5 WAY FLAME SENSOR (5 CHANNEL) module.

5 WAY FLAME SENSOR 5 CHANNEL SENSOR API ARDUINO, FIRE FIGHTER ROBOT

5 WAY FLAME SENSOR 5 CHANNEL SENSOR API ARDUINO, FIRE FIGHTER ROBOT

Rp 37.632
