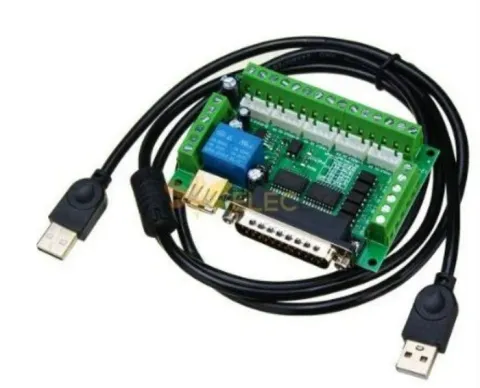

5 Axis CNC Interface Adapter Breakout Board For Stepper Motor Driver

Penuhi kebutuhan komponenmu di toko ini

Happy Shopping!!

MACH3 Interface Board CNC 5 Axis with Optocoupler latest upgrade 5 axis breakout board is specially designed for the CNC stepper/servo driver controller, such as TB6560, M542, M542H, MA860H, 2M542, 2M982, DM542(A), DM860(A) and other STEP/DIR input drivers. With this 5 axis breakout board you can drive any 1-5 axis machine used with stepper/servo driver controllers, it can be directly controlled by the PC via the MACH3, EMC2, KCAM4, and others by using DB25 port output.

Features:

- Maximum support 5-axis stepper motor driver controllers

- Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software.

- USB power supply and peripherals powered phase are separated to protect computer security.

- All the signals are opto-isolated which can protect your computer security.

- 5-input interface to define the Limit, Emergence-Stop, Cutter alignment, etc.

- Wide input voltage range: 12-24V, and with anti-reverse function.

- One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc.

- Output 0-10V analog voltage for inverter to control the spindle speed.

- Dimensions : 90 * 70 * 20 mm (L*W*H)

- Net/Total Weight : ∼ 75g

Note:

-Tutorial dan penjelasan lebih lanjut dapat dilihat di datasheet atau opensource elektronika yang tersedia di internet

-TIDAK ADA GARANSI SUPPLIER MAUPUN TOKO
