This is a very affordable 24Mhz 8 Channel USB Logic analyzer. This is a hobbyist level analyzer, ideal for testing your Arduino or other hobbyist microcontroller's communications. A logic analyzer is a must have tool for any serious electronics hobbyist. With a logic analyzer it is possible to see a visual representation of the zeros and ones that are flashing by between two components. A logic analyzer is different from an oscilloscope because the analyzer allows you to capture the data on a PC for a more detailed analysis of the data which is being transmitted and received. This logic analyzer supports 10 different communications standards (see Specifications below). with 8 channels it will allow you to monitor upto 8 differnet wires. So on an Arduino you could monitor the Serial port (tx/Rx pins), the I2C port (pins A4, A5), and the SPI port (pins 10, 11, 12, and 13) all at the same time.

Specifications

8 Channels

Supports triggering (rising, high, falling, low)

Up to 24Mhz sampling

Up to 10 Billion samples

Max Voltage: 5.25Vdc

supports:

CAN

DMX-512

I2C

I2S/PCM

Manchester

1-Wire

Async Serial

Simple Parallel

SPI

UNI/O

Fully compatible with the Saleae Logic software

Shipping List

Logic Analyzer (1 unit)

Mini USB Cable (1 unit)

Jumper wire (10 units)

Documents

wiki

Hack A Day- Saleae Logic

Salae logic software

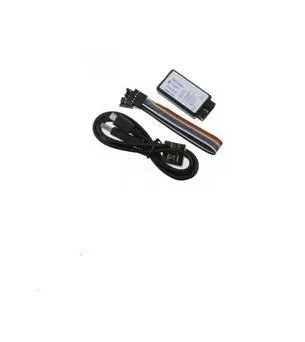

24Mhz 8 Channel Logic analyzer (Saleae Logic Compatible)
