1)13.56MHz transponder frequency

2)10cm operating distance

3)unique serial number

RFID mifare reader module

1)13.56MHz transponder frequency

2)10cm operating distance

3)unique serial number

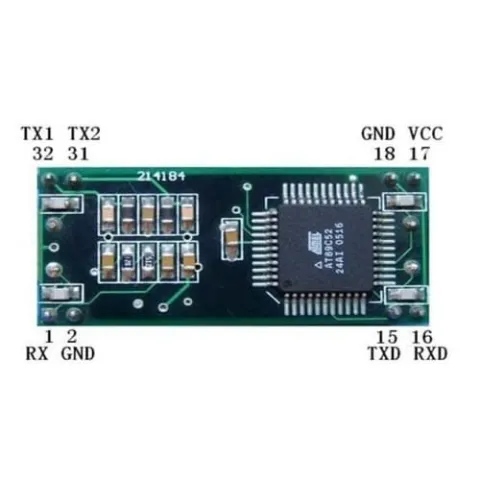

YLMF16Â RFID mifare reader module

1. Mifare Standard

1024 bytes EEPROM, divided into 16 sectors with 64 bytes on each sector

100,000 write endurance cycles

10 years data retention

ISO 14443 A

13.56MHz transponder frequency

106k bit baud rate

Bit-wise anti-collision

Up to 10 cm operating distance

4 byte unique serial number

Random number generator

2 bytes access key per sector

Individual access condition for each sector

Purse functionality.

2. Technical Specification

Power supply: 5V, 80-100mA

Interface: 232Â TTL

Transmission speed: 19200 bps

R/W distance of up to 60mm (up to 100mm with bigger antenna size), depending on TAG.

Storage temperature: -40 ÂºC ~ +85 ÂºC

Operating temperature: 0 ÂºC ~ +70 ÂºC

3. Communication setting

The communication protocol is byte oriented. Both sending and receiving bytes are in hexadecimal format. The communication parameters are as follows:

Baud rate:Â Â Â Â 19200 bps

Data:Â Â Â Â Â 8 bits

Stop:Â Â Â Â Â 1 bit

Parity:Â Â Â Â Â None

Flow control:Â None.

13.56MHz RFID reader module YLMF16A

Rp 382.200
