Specification:

Apply to power grid voltage range: 110V-220V

Working voltage: 80 ~ 260VAC

Test voltage: 80 ~ 260VAC

Rated power: 100A / 22000W

Working Frequency: 45-65Hz

Measurement accuracy: 1.0

Feature:

Network voltage direct power supply, no external power supply, measurement precision, large-screen LCD liquid crystal screen display clearly.

A. Function

1. electrical parameter measurement function (voltage, current, active power, power).

2. overload alarm function (over power alarm threshold, the backlight and power flicker tips).

3. The power alarm threshold preset function (can set up their own power alarm threshold).

The power button clear function.

5. Power-down data storage function.

6. Large-screen LCD screen full display function (display voltage, current, active power, power).

7. Backlight.

B. Display and key

Display Interface

Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously.

Display Format

1. Power: measurement range 0 ~ 22kW

1kW display format within 0.0 ~ 999.9W;

From 1kW display format 1000 ~ 9999W;

10kW above the display format 10.0 ~ 22.0kW.

2. Power: measurement range 0 ~ 9999kWh

10kWh within the display format 0 ~ 9999Wh;

Above 10kWh display format 10 ~ 9999kWh;

3. Voltage: Test Range 80 ~ 260V

Display Format 80 ~ 220V

4. Current: Test Range 0 ~ 100A

Display Format 0.00 ~ 99.99A.

Package included:

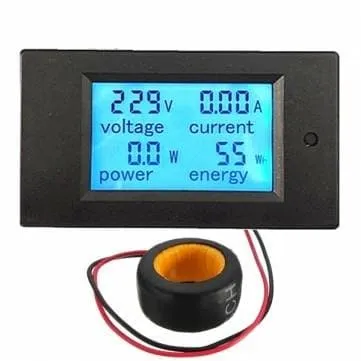

1 x 100A Power Monitor Module AC Meter Panel

1 x CT
